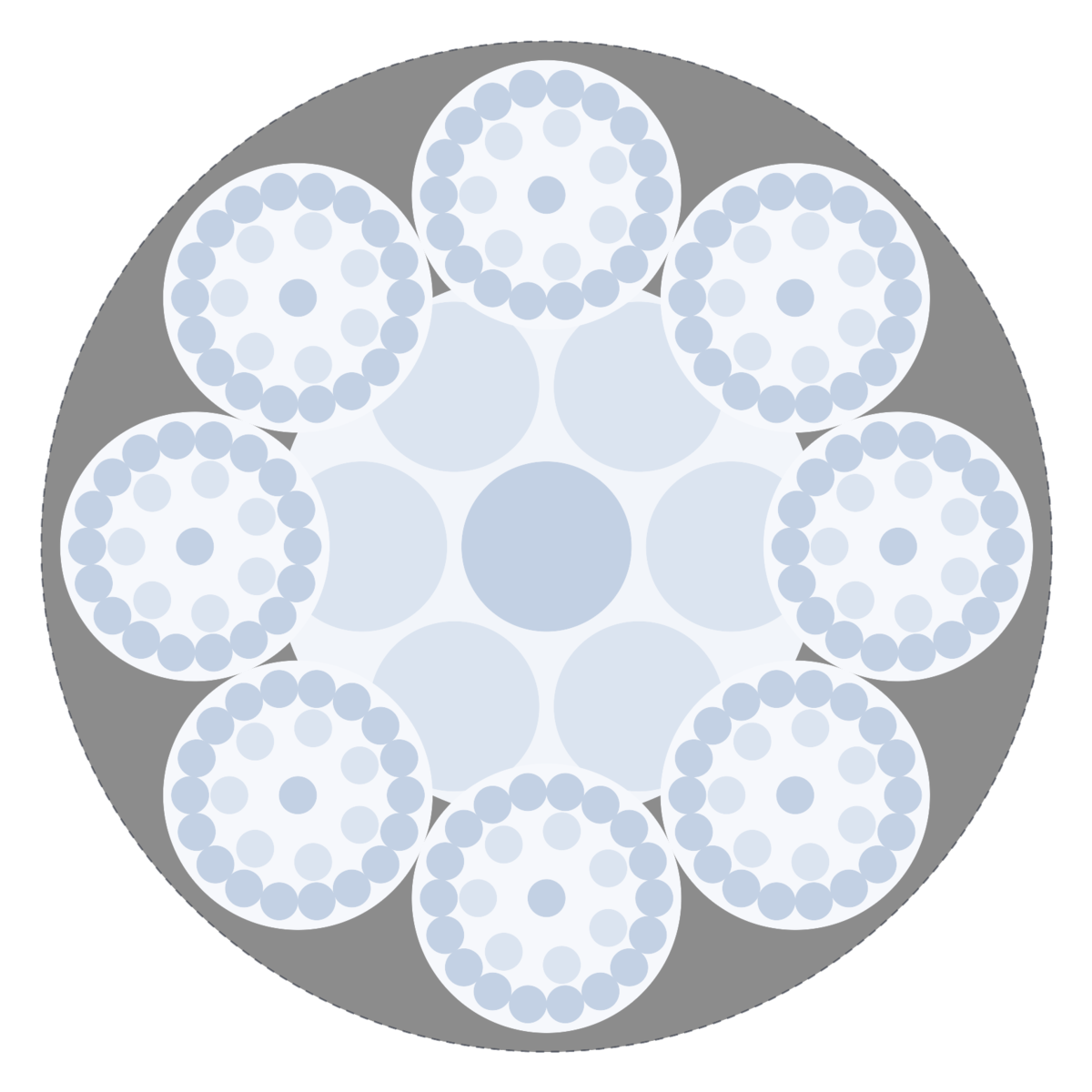

Usha Martin brand steel wire rope, Powerform 8P compacted rope 8×26 const. galvanized, rotating, strand core (IWRC), RHOL, Tensile strength 1960N/mm2, Preformed, conforming to EN 12385/4/2002+A1 with mfg.'s test certificate copy. Supplied by Sealinkers. Cut to your exact length, with in-house proof-load testing.
Specifications
| Construction | 8×26 |
|---|---|
| Core | Steel Core (IWRC) |
| Finish | Galvanised |
| Tensile Grade | 1960 N/mm² |
| Type | Compacted |
| Standard | IS 2266 |
| Lay | RHO/LHO |
| Application | General |
Available sizes
| Diameter | Approx. Weight | Min. Breaking Load |
|---|---|---|
| 10 mm | 0.446 kg/m | 88.0 kN (8.97 t) |
| 11 mm | 0.543 kg/m | 106.0 kN (10.81 t) |
| 12 mm | 0.648 kg/m | 126.0 kN (12.84 t) |
| 13 mm | 0.763 kg/m | 148.0 kN (15.09 t) |
| 14 mm | 0.883 kg/m | 172.0 kN (17.53 t) |
| 15 mm | 1.032 kg/m | — |
| 16 mm | 1.153 kg/m | 225.0 kN (22.94 t) |
| 18 mm | 1.458 kg/m | 285.0 kN (29.05 t) |
| 19 mm | 1.628 kg/m | 317.0 kN (32.31 t) |
| 20 mm | 1.805 kg/m | 351.0 kN (35.78 t) |
| 22 mm | 2.198 kg/m | 425.0 kN (43.32 t) |
| 24 mm | 2.611 kg/m | 506.0 kN (51.60 t) |
| 25 mm | 2.830 kg/m | 567.0 kN (57.82 t) |
| 26 mm | 3.138 kg/m | 594.0 kN (60.57 t) |
| 28 mm | 3.550 kg/m | 688.0 kN (70.16 t) |
| 30 mm | 4.080 kg/m | 790.0 kN (80.56 t) |
| 32 mm | 4.640 kg/m | 899.0 kN (91.67 t) |
| 34 mm | 5.239 kg/m | 1013.0 kN (103.30 t) |
| 36 mm | 5.862 kg/m | 1138.0 kN (116.04 t) |
| 38 mm | 6.570 kg/m | — |
| 40 mm | 7.149 kg/m | 1405.0 kN (143.27 t) |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
