Round strand steel wire rope, RHO/LHO conforming to IS 4521 & API-9A latest editions Supplied by Sealinkers. Cut to your exact length, with in-house proof-load testing.
Specifications

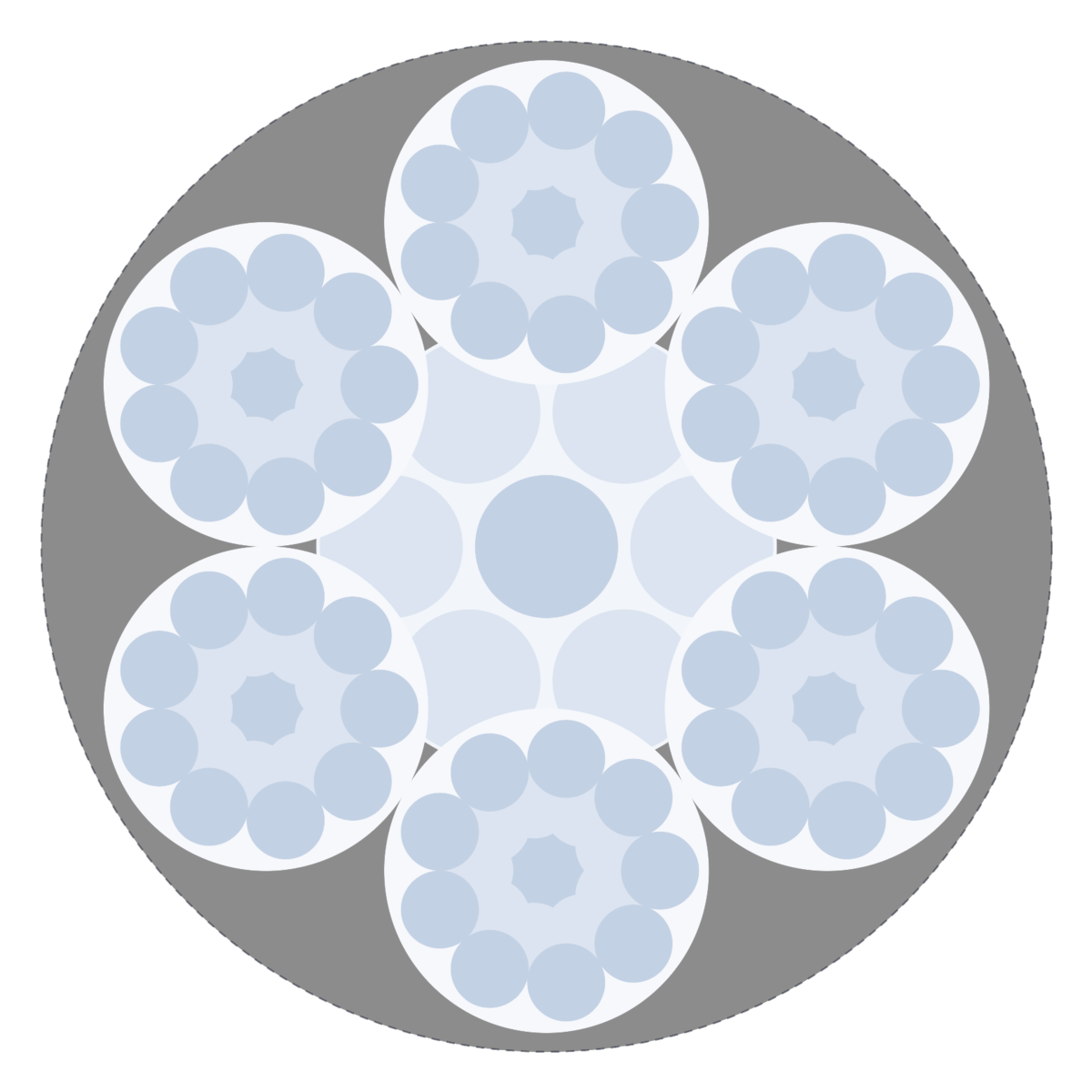

| Construction | 6×19 Drill |
|---|---|
| Core | Steel Core (IWRC) |
| Finish | Galvanised |
| Tensile Grade | 1960 N/mm² |
| Type | Non-compacted |
| Standard | IS 4521 / API-9A |
| Lay | RHO/LHO |
| Application | Oil Drill Line |
Available sizes
| Diameter | Approx. Weight |
|---|---|
| 25 mm | 2.534 kg/m |
| 25.4 mm | 2.634 kg/m |
| 26 mm | 2.716 kg/m |
| 28.58 mm | 3.292 kg/m |
| 29 mm | 3.405 kg/m |
| 31.75 mm | 4.078 kg/m |
| 32 mm | 4.158 kg/m |
| 34.93 mm | 4.978 kg/m |
| 35 mm | 4.978 kg/m |
| 38 mm | 5.873 kg/m |
| 38.1 mm | 5.873 kg/m |
| 41.28 mm | 6.774 kg/m |
| 44.45 mm | 8.117 kg/m |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
