Usha Martin Hyflex 6x36SW Wire Rope — Steel Core (IWRC), Ungalvanised (1960 N/mm²)

Usha Martin Hyflex 6x36SW Wire Rope — Steel Core (IWRC), Ungalvanised (1960 N/mm²)

Genuine Usha Martin Hyflex 6x36SW steel wire rope, ungalvanised, steel core (iwrc), tensile grade 1960 N/mm². Sold per metre, cut to length — 8 mm to 50 mm dia ex-stock. Mill test certificate with every supply.

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Ask on WhatsApp

Description
Additional information

Usha Martin steel wire rope, Hyflex 6×36 ungalvanized, 6×36 const. steel core (IWRC), RHOL, Tensile strength 1960 N/mm2, Preformed, confirming to IS:2266/2002 with mfgs test certificate. Supplied by Sealinkers. Cut to your exact length, with in-house proof-load testing.

Specifications

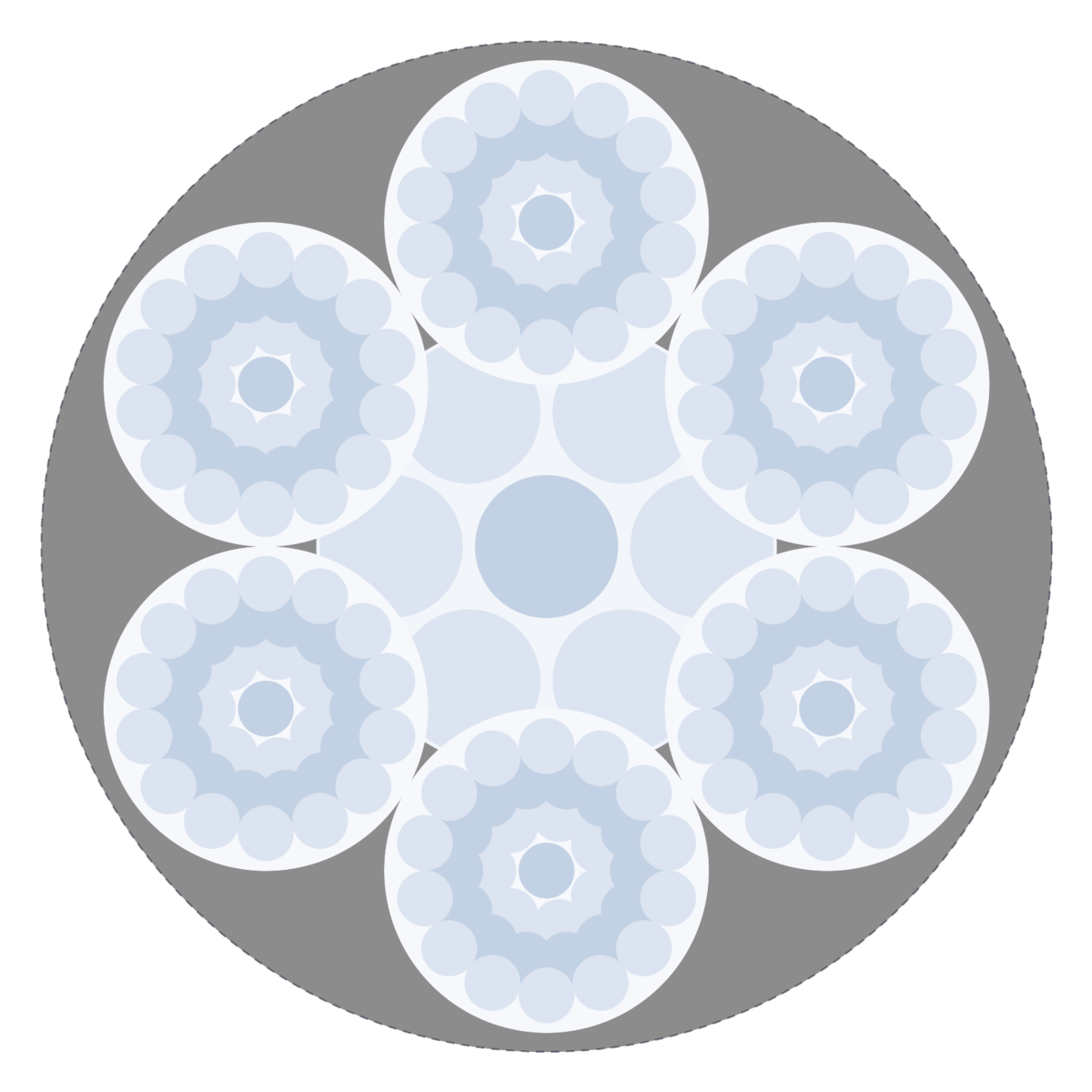

Construction	6x36SW
Core	Steel Core (IWRC)
Finish	Ungalvanised
Type	Non-compacted
Tensile Grade	1960 N/mm²
Standard	IS:2266 / IS/ISO-2408
Lay	RHO/LHO
Application	General

Available sizes

Diameter	Min. Breaking Load	Approx. Weight
8 mm	45.0 kN (4.59 t)	0.269 kg/m
9 mm	57.0 kN (5.81 t)	0.344 kg/m
10 mm	70.0 kN (7.14 t)	0.409 kg/m
11 mm	85.0 kN (8.66 t)	0.491 kg/m
12 mm	101.0 kN (10.30 t)	0.596 kg/m
13 mm	118.0 kN (12.03 t)	0.706 kg/m
14 mm	137.0 kN (13.97 t)	0.802 kg/m
15 mm	—	0.915 kg/m
16 mm	179.0 kN (18.25 t)	1.044 kg/m
17 mm	—	1.185 kg/m
18 mm	226.0 kN (23.04 t)	1.335 kg/m
19 mm	252.0 kN (25.69 t)	1.492 kg/m
20 mm	279.0 kN (28.44 t)	1.654 kg/m
22 mm	338.0 kN (34.45 t)	2.001 kg/m
24 mm	402.0 kN (40.98 t)	2.390 kg/m
25 mm	436.0 kN (44.44 t)	2.586 kg/m
26 mm	472.0 kN (48.11 t)	2.805 kg/m
27 mm	—	3.029 kg/m
28 mm	548.0 kN (55.86 t)	3.259 kg/m
29 mm	—	3.486 kg/m
30 mm	629.0 kN (64.12 t)	3.740 kg/m
31 mm	—	4.019 kg/m
32 mm	715.0 kN (72.88 t)	4.297 kg/m
34 mm	806.0 kN (82.16 t)	4.796 kg/m
35 mm	855.0 kN (87.16 t)	5.120 kg/m
36 mm	905.0 kN (92.25 t)	5.405 kg/m
38 mm	1008.0 kN (102.75 t)	5.974 kg/m
40 mm	1117.0 kN (113.86 t)	6.648 kg/m
41 mm	—	6.981 kg/m
42 mm	1232.0 kN (125.59 t)	7.372 kg/m
44 mm	1352.0 kN (137.82 t)	8.055 kg/m
45 mm	—	8.394 kg/m
46 mm	1478.0 kN (150.66 t)	8.821 kg/m
48 mm	1609.0 kN (164.02 t)	9.658 kg/m
50 mm	1746.0 kN (177.98 t)	10.389 kg/m

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.

Diameter	8 mm, 9 mm, 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 16 mm, 17 mm, 18 mm, 19 mm, 20 mm, 22 mm, 24 mm, 25 mm, 26 mm, 27 mm, 28 mm, 29 mm, 30 mm, 31 mm, 32 mm, 34 mm, 35 mm, 36 mm, 38 mm, 40 mm, 41 mm, 42 mm, 44 mm, 45 mm, 46 mm, 48 mm, 50 mm
