Usha Martin brand steel wire rope, galvanized, 6×19 const. steel core (IWRC), RHOL, Tensile strength 2160N/mm2, Preformed, confirming to IS:2266/2002 with mfg.'s test certificate copy. Supplied by Sealinkers. Cut to your exact length, with in-house proof-load testing.
Specifications
| Standard | IS:2266 |
|---|---|

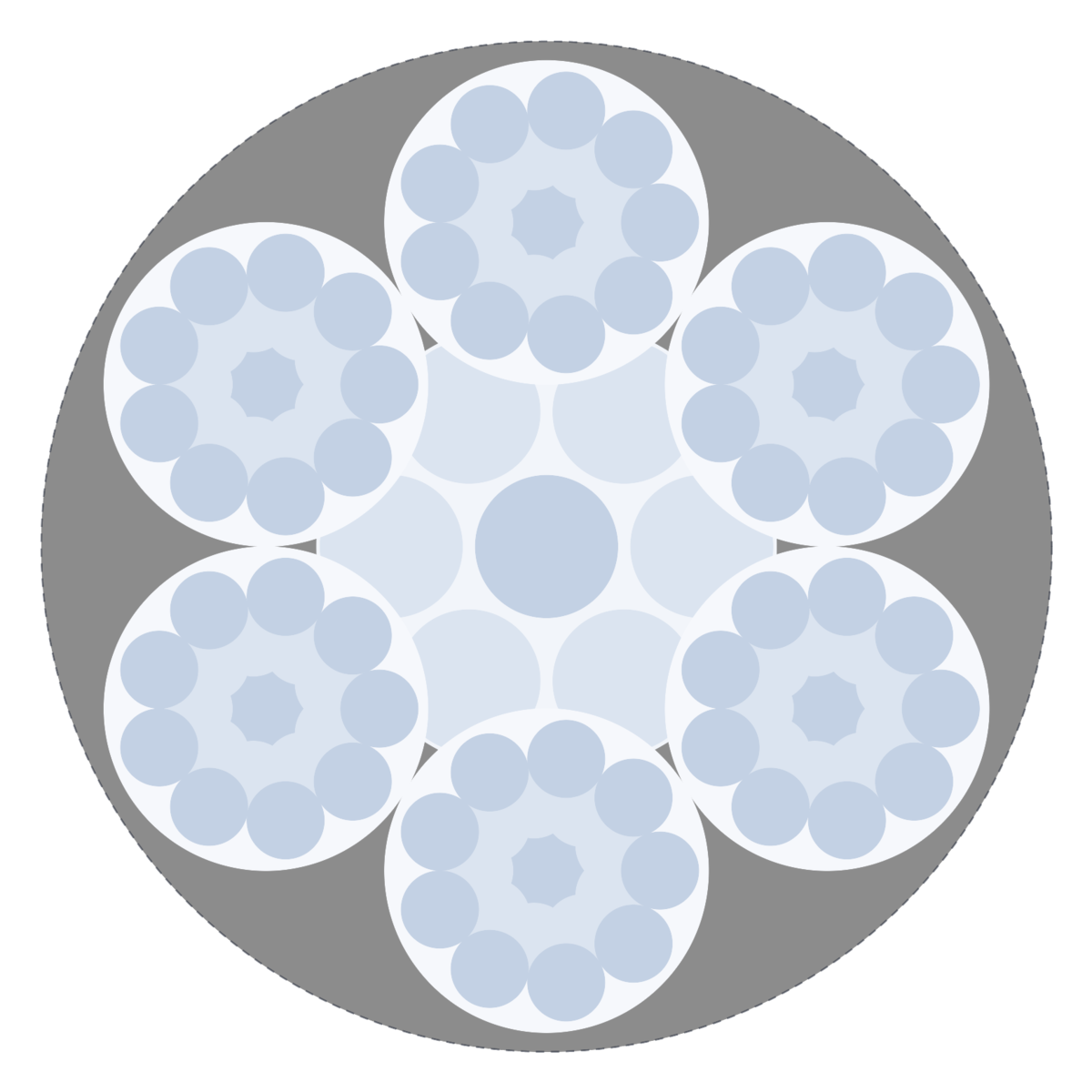

| Construction | 6×19 |
| Core | Steel Core (IWRC) |
| Finish | Galvanised |
| Tensile Grade | 2160 N/mm² |
| Type | Non-compacted |
| Lay | RHO/LHO |
| Application | General |
Available sizes
| Diameter | Approx. Weight |
|---|---|
| 8 mm | 0.255 kg/m |
| 9 mm | 0.319 kg/m |
| 10 mm | 0.389 kg/m |
| 11 mm | 0.476 kg/m |
| 12 mm | 0.598 kg/m |
| 13 mm | 0.702 kg/m |
| 14 mm | 0.807 kg/m |
| 15 mm | 0.935 kg/m |
| 16 mm | 1.060 kg/m |
| 17 mm | 1.184 kg/m |
| 18 mm | 1.361 kg/m |
| 19 mm | 1.486 kg/m |
| 20 mm | 1.637 kg/m |
| 21 mm | 1.814 kg/m |
| 22 mm | 2.000 kg/m |
| 23 mm | 2.220 kg/m |
| 24 mm | 2.374 kg/m |
| 25 mm | 2.587 kg/m |
| 26 mm | 2.823 kg/m |
| 28 mm | 3.206 kg/m |
| 29 mm | 3.501 kg/m |
| 30 mm | 3.724 kg/m |
| 32 mm | 4.240 kg/m |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
