Usha Martin brand steel wire rope Hyflex, galvanized, 35×7 const. Rotation resistance, strand core (WSC), RHLL, Tensile strength 2160N/mm2, Preformed, confirming to IS:2266/2002 with mfg.'s test certificate copy. Supplied by Sealinkers. Cut to your exact length, with in-house proof-load testing.
Specifications

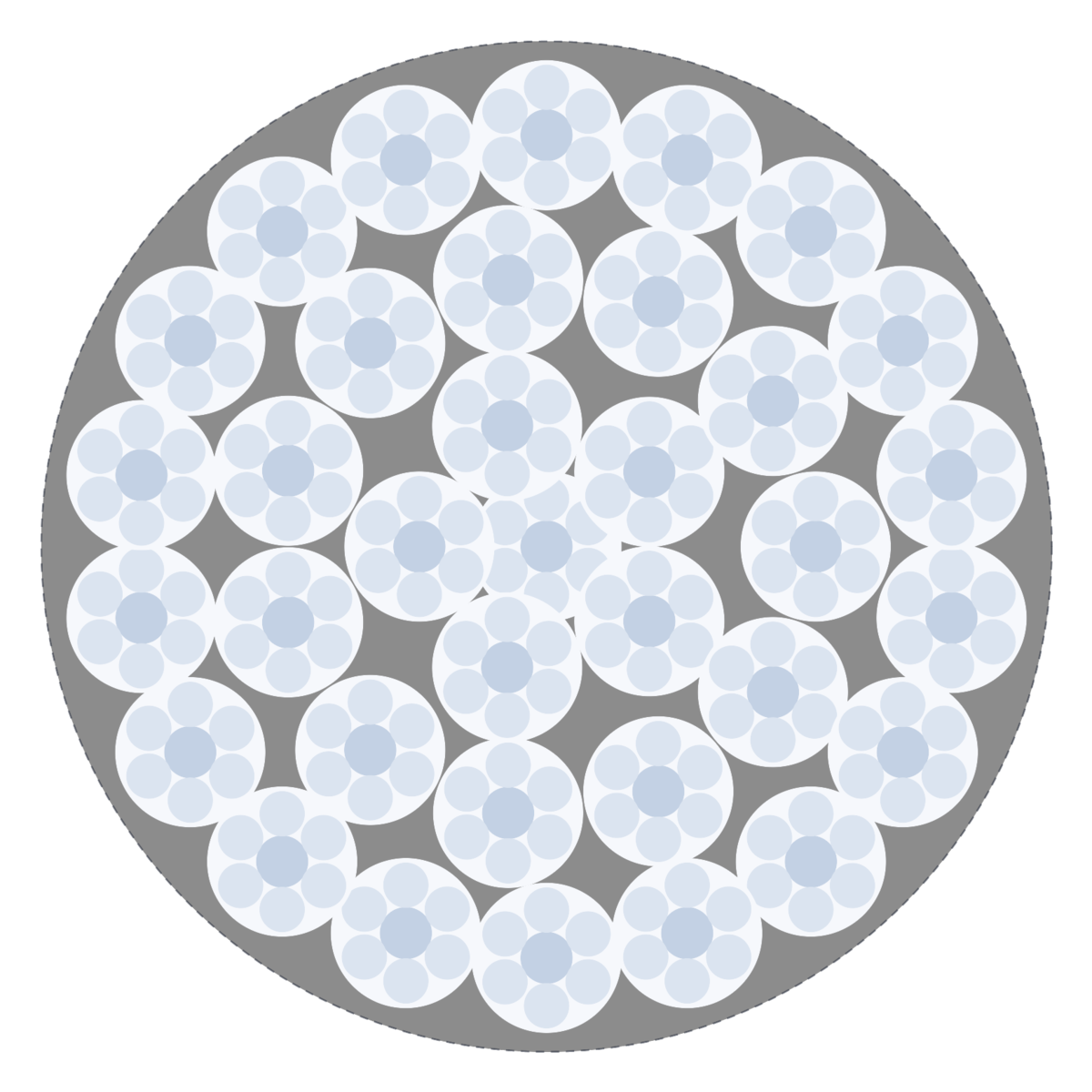

| Construction | 35×7 |
|---|---|
| Core | Steel Core (IWRC) |
| Finish | Galvanised |
| Tensile Grade | 2160 N/mm² |
| Type | Non-compacted |
| Standard | IS 2266 / IS/ISO-2408 |
| Lay | RHO/LHO |
| Application | General |
Available sizes
| Diameter | Approx. Weight |
|---|---|
| 12 mm | 0.598 kg/m |
| 13 mm | 0.708 kg/m |
| 14 mm | 0.825 kg/m |
| 15 mm | 0.931 kg/m |
| 16 mm | 1.051 kg/m |
| 18 mm | 1.342 kg/m |
| 19 mm | 1.520 kg/m |
| 20 mm | 1.689 kg/m |
| 22 mm | 2.019 kg/m |
| 24 mm | 2.421 kg/m |
| 25 mm | 2.633 kg/m |
| 26 mm | 2.857 kg/m |
| 28 mm | 3.260 kg/m |
| 29 mm | 3.526 kg/m |
| 30 mm | 3.793 kg/m |
| 32 mm | 4.322 kg/m |
| 33 mm | 4.426 kg/m |
| 34 mm | 4.894 kg/m |
| 36 mm | 5.263 kg/m |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
