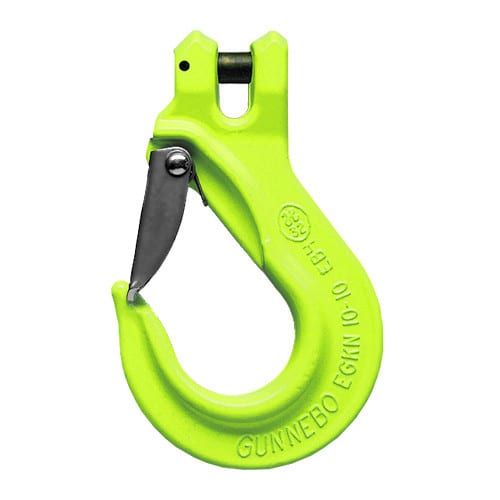

Gunnebo EGKN Sling Hooks with Latch – Grade 100
The Gunnebo EGKN Sling Hook is perhaps the most well-known and widely used hook style for chain slings. Built for reliability and safety, the EGKN features a forged alloy steel body and a spring-loaded safety latch that keeps the load securely engaged. Designed for use with Grade 100 and Grade 80 chain, it’s a trusted standard in lifting, rigging, and material handling applications around the world.
Key Features: Compatible with Grade 100 or Grade 80 chain
Forged alloy steel construction for exceptional durability
Heavy-duty latch for positive load retention
4:1 Design Factor for dependable lifting performance
Complies with EN 1677:2008 (+25% WLL), ASTM A952/A952M, and AS 3776:2015
One of the most recognized and widely used sling hook designs in the industry Important: Always ensure the hook and chain are properly matched. Working Load Limit (WLL) values are based on the weakest component in the assembly.
Specifications: Stock No.
Model
WLL (lbs)
Throat Opening (in)
Weight (lbs) B14460
EGKN-6-10
3,306
0.98
0.88 Z100843
EGKN-7-10
4,500
1.06
1.10 B14461
EGKN-8-10
5,700
1.10
1.10 B14462
EGKN-10-10
8,800
1.38
2.43 B14463
EGKN-13-10
15,000
1.65
4.85 B14464
EGKN-16-10
22,600
2.09
8.82 Z101127
EGKN-20-10
35,300
2.56
16.76 All dimensions are in inches. Working Load Limits (WLL) are based on Grade 100 chain with a 4:1 design factor. Meets EN 1677:2008 (+25% WLL), ASTM A952/A952M, and AS 3776:2015 standards.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
