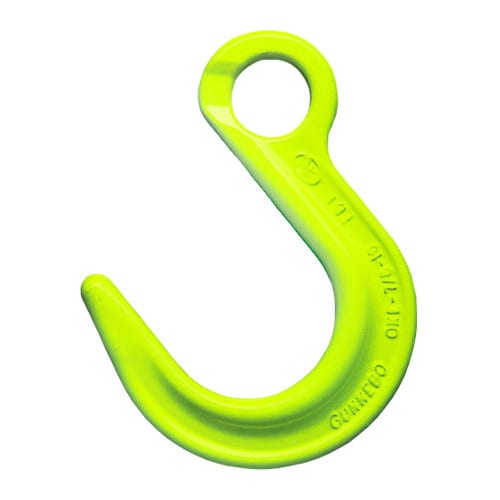

Gunnebo OKE Foundry Hooks with Eye – Grade 100
The Gunnebo OKE Foundry Hook with Eye is a heavy-duty, open-throat hook designed for foundry, rigging, and general lifting applications where quick connection and release are needed. Made from forged alloy steel and precision heat-treated for strength, the OKE combines rugged performance with dependable safety. Its large throat opening allows easy engagement with various lifting points, while the forged eye connection provides a strong, stable attachment to chain or fittings.
Key Features: Compatible with Grade 100 or Grade 80 chain assemblies
Forged alloy steel construction for superior durability and long service life
Large throat opening for fast, efficient rigging connections
Forged eye connection for secure, stable attachment
No latch by design — foundry hooks are open style and not intended to be fitted with a latch kit
4:1 Design Factor for dependable performance under rated load
Complies with EN 1677:2008 (+25% WLL) and ASTM A952/A952M Important: Foundry hooks are designed for specific lifting applications and should only be used by trained personnel. Never attempt to retrofit a latch onto a foundry hook. Always verify that the hook, chain, and connection points are properly rated and compatible.
Specifications: Stock No.
Model
WLL (lbs)
Throat Opening (in)
Inside Eye Diameter (in)
Weight (lbs) Z100853
OKE-7/8-10
5,700
2.48
1.10
1.76 Z100854
OKE-10-10
8,800
2.99
1.34
3.09 Z100855
OKE-13-10
15,000
3.54
1.73
6.17 Z100898
OKE-16-10
22,600
4.02
2.20
10.80 Z101340
OKE-20-10
35,300
4.49
2.36
15.87 Z101341
OKE-22-10
44,080
4.72
2.52
24.91 Z101342
OKE-26-10
60,169
4.45
2.76
35.27 All dimensions are in inches. Working Load Limits (WLL) are based on Grade 100 chain with a 4:1 design factor. Meets EN 1677:2008 (+25% WLL) and ASTM A952/A952M standards. Foundry hooks are open-throat designs with no latch — this is intentional and per manufacturer design.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
