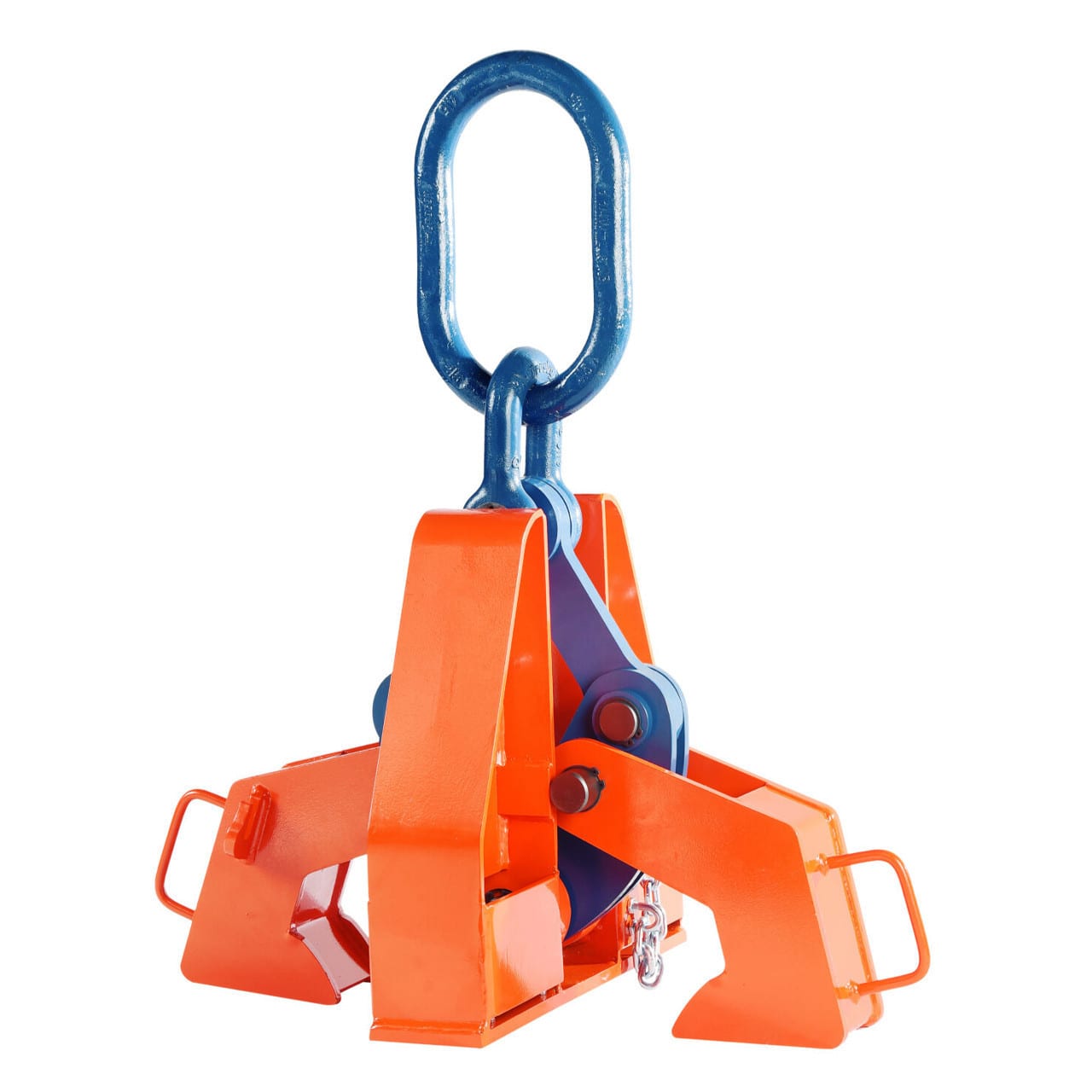

Crosby IP IPBCNS 32 Ton Beam Clamp – #2702054

The Crosby IP IPBCNS 32 Ton Beam Clamp is part of the Crosby lifting clamp range (catalogue no. 2702054). Sealinkers supplies it from Mumbai with documentation on request.

Crosby® IPBCNS Wide Flange Beam Clamp
The Crosby® IPBCNS Beam Clamp is a high-capacity, heavy-duty clamp engineered for the lifting, handling, and transfer of wide flange beams and plate girders. Built from welded alloy steel with forged alloy components where required, this clamp grips the beam securely at three points for stable, balanced lifting—even when slightly off-center. Designed for use in structural steel, bridge, and construction applications, the IPBCNS eliminates the need for slings, chokers, and spreader bars, improving jobsite efficiency and safety.
When load is applied, the clamp’s tongs automatically open and slide under the beam flange. Its self-energizing design increases clamping pressure as beam weight increases, ensuring a strong and secure hold. Each clamp is individually proof-tested to 2× its Working Load Limit (WLL) and includes full test certification for compliance with EN 13155 and ASME B30.20 standards.
Key Features Designed for lifting wide flange beams and plate girders with three-point grip stability.
Automatic tong action — tongs open and slide under flange when load is applied.
Self-tightening design increases grip pressure as beam weight increases.
Recessed base accommodates welded studs on beam surface.
Forged and welded alloy steel construction for strength and compact design.
Individually proof-tested to 2× WLL, serialized, and supplied with certification.
Maintenance kits available for long-term service support. Important: Always control the beam during lifting operations. Beams should be gripped as close to the center as possible, and snubbing lines must be used at each end to prevent twisting or swinging. This clamp is designed for balanced, guided handling of beams and girders.
Specifications WLL (t)
Stock No.
Flange Grip Range (in)
Beam Thickness (in)
Weight (lb)
Maintenance Kit No. 13.5
2702018
7 – 17
0.5 – 2
137
2729610 22.5
2702036
16 – 24
1 – 3
291
2729610 32
2702054
16 – 36
1.63 – 4
529
2729610 Design factor based on EN 13155 and ASME B30.20 standards. Each clamp is proof-tested to twice its rated Working Load Limit and supplied with certification. Higher WLL models available upon request.

Specifications

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
