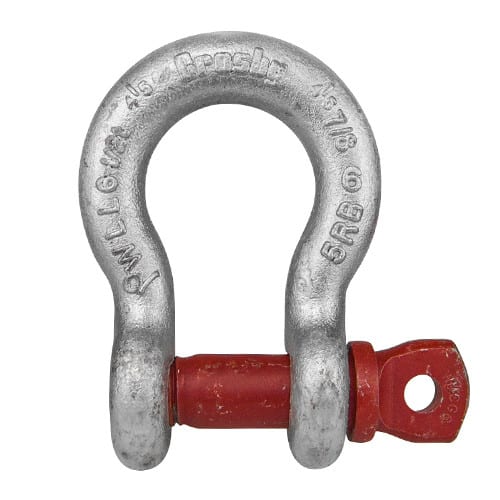

Crosby 1/2″ G-209 Screw Pin Anchor Shackle – 2 Ton WLL – #1018455

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby 1/2" G-209 Screw Pin Anchor Shackle – 2 Ton WLL is part of the Crosby shackle range (catalogue no. 1018455). Sealinkers supplies it from Mumbai with documentation on request.

Crosby G-209 Screw Pin Anchor Shackles
Crosby G-209 Screw Pin Anchor Shackles are the industry standard for everyday rigging, lifting, and towing applications. Forged, quenched & tempered from high-strength steel and equipped with an alloy pin, these Grade 6 shackles are proof-tested, fatigue rated, and built to perform under demanding field conditions. All G-209 shackles feature the Red Pin® — a mark of genuine Crosby quality. Features Grade 6 Performance: Meets or exceeds the performance requirements of Grade 6 shackles.
Forged, Quenched & Tempered: High-strength alloy steel body with alloy screw pin for dependable durability.
Permanent Identification: Working Load Limit and Grade 6 permanently shown on every shackle.
Finish Options: Hot-dip galvanized (G) stocked for corrosion resistance; self-colored (S) available by special order.
Small Sizes: Sizes 3/8 inch and below are mechanically galvanized.
Fatigue Rated: Tested at 1.5 × WLL for 20 000 cycles to ensure long service life.
Proof Tested & Certifiable: Shackles can be furnished proof-tested with certificates to ABS, DNV, Lloyds, or other standards. Certification must be requested at time of order (additional charges apply).
Temperature Rated: Approved for continuous use from −40 °F (−40 °C) to 400 °F (204 °C).
Optional Charpy Impact Rating: All 209 and 210 series shackles can meet Charpy requirements of 31 ft-lb (42 J) avg. at −4 °F (−20 °C) upon special request.
Standards Compliance: Meets or exceeds ASME B30.26 requirements.
Type Approval Available: ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances upon request (certificates may incur extra charges).
Federal Spec Conformance: G-209 shackles meet Federal Specification RR-C-271H Type IVA, Grade A, Class 2 (except contractor provisions).
Genuine Crosby Quality: Look for the Red Pin® — your assurance of true Crosby manufacturing integrity. Specifications #g209-specs {border-collapse:collapse;width:100%;font-size:14px;} #g209-specs th,#g209-specs td {border:1px solid #ccc;padding:8px;text-align:left;} #g209-specs thead th {background:#f2f2f2;} @media (max-width:640px){#g209-specs th,#g209-specs td{padding:6px;}} Nominal Size (in)
WLL (t)
Stock No.
Weight (lb)
A
B
C
D
E
F
G
H
L
M
P
Tolerance (± in) C
A 3/16
0.33
1018357
0.06
0.38
0.25
0.88
0.19
0.60
0.56
0.98
1.47
0.16
1.14
0.19
0.06
0.06 1/4
0.5
1018375
0.10
0.47
0.31
1.13
0.25
0.78
0.62
1.28
1.84
0.19
1.43
0.25
0.06
0.06 5/16
0.75
1018393
0.18
0.53
0.38
1.21
0.31
0.84
0.75
1.46
2.09
0.22
1.71
0.31
0.06
0.06 3/8
1
1018419
0.31
0.66
0.44
1.45
0.38
1.03
0.92
1.79
2.50
0.25
2.06
0.38
0.13
0.06 7/16
1.5
1018437
0.38
0.75
0.50
1.69
0.44
1.16
1.06
2.04
2.91
0.31
2.37
0.44
0.13
0.06 1/2
2
1018455
0.72
0.81
0.62
1.88
0.50
1.31
1.18
2.31
3.28
0.38
2.69
0.50
0.13
0.06 5/8
3.25
1018473
1.37
1.06
0.75
2.38
0.62
1.69
1.50
2.93
4.19
0.44
3.34
0.69
0.13
0.06 3/4
4.75
1018491
2.35
1.25
0.88
2.81
0.75
2.00
1.81
3.50
4.97
0.50
3.97
0.81
0.25
0.06 7/8
6.5
1018516
3.62
1.44
1.00
3.31
0.88
2.28
2.10
4.04
5.83
0.50
4.50
0.97
0.25
0.06 1
8.5
1018534
5.03
1.69
1.12
3.76
1.00
2.69
2.38
4.69
6.56
0.56
5.13
1.06
0.25
0.06 1-1/8
9.5
1018552
7.41
1.81
1.25
4.27
1.16
2.91
2.68
5.15
7.47
0.63
5.97
1.25
0.25
0.06 1-1/4
12
1018570
9.50
2.03
1.38
4.69
1.29
3.26
3.00
5.76
8.26
0.69
6.50
1.38
0.25
0.06 1-3/8
13.5
1018598
13.53
2.25
1.53
5.22
1.42
3.62
3.31
6.38
9.16
0.75
6.93
1.50
0.25
0.13 1-1/2
17
1018614
17.20
2.38
1.63
5.76
1.53
3.88
3.62
6.94
10.00
0.81
7.43
1.62
0.25
0.13 1-3/4
25
1018632
27.78
2.88
2.00
7.00
1.84
5.00
4.19
8.80
12.34
1.00
9.19
2.25
0.25
0.13 2
35
1018650
45.00
3.25
2.25
7.75
2.08
5.75
4.81
10.15
13.68
1.13
10.36
2.40
0.25
0.13 2-1/2
55
1018678
85.75
4.12
2.75
10.51
2.72
7.25
5.81
12.75
17.92
1.38
13.17
3.13
0.25
0.25 Design Factor: 6:1. Proof Load = 2× WLL. Meets ASME B30.26 and Federal Specification RR-C-271H. For side-loading reductions and application limits, see manufacturer warnings.
