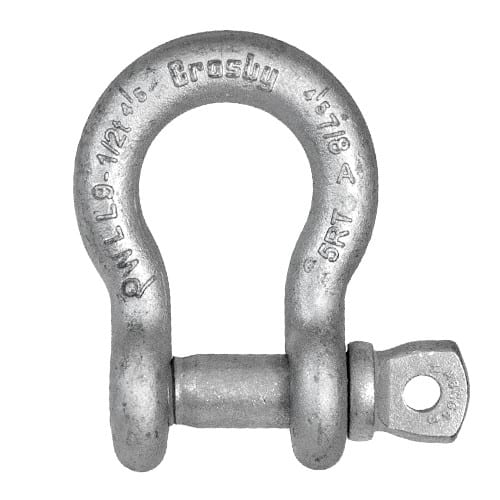

Crosby 3/8″ G-209A Alloy Screw Pin Anchor Shackle – 2 Ton WLL – #1017450

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby 3/8" G-209A Alloy Screw Pin Anchor Shackle – 2 Ton WLL is part of the Crosby shackle range (catalogue no. 1017450). Sealinkers supplies it from Mumbai with documentation on request.

Crosby G-209A Alloy Screw Pin Anchor Shackles – Grade 8 Performance for Critical Rigging
Crosby G-209A Alloy Screw Pin Anchor Shackles deliver the strength and reliability demanded in critical lifting, towing, and rigging applications. Forged from high-strength alloy steel and Quenched & Tempered, these shackles are engineered to meet the performance requirements of Grade 8 shackles, offering higher capacity and toughness than standard carbon models. Each shackle is permanently marked with its Working Load Limit and features Crosby’s signature Red Pin® for easy identification of genuine Crosby quality. Features Forged Alloy Steel Construction: Bows and screw pins are forged from high-strength alloy and Quenched & Tempered for maximum performance.
Grade 8 Performance: Meets the performance requirements of Grade 8 shackles, offering superior strength and ductility.
Permanent Identification: Each shackle is marked with Working Load Limit (WLL) and Crosby name for traceability.
Finish Options: Hot-dip galvanized for corrosion resistance; 3/8" size is mechanically galvanized.
Temperature Rated: Safe for continuous service from −40°F (−40°C) to 400°F (204°C).
Proof Tested and Certifiable: Can be furnished proof tested with certificates to ABS, DNV, Lloyds, or other standards upon request (additional charges may apply).
Design Factor: 5:1. Proof load equals 2× the Working Load Limit (WLL).
Standards Compliance: Meets or exceeds ASME B30.26 requirements for identification, ductility, design factor, proof load, and temperature. Also meets impact and traceability standards beyond ASME scope.
Federal Specification: Conforms to RR-C-271H, Type IVA, Grade B, Class 2 (except contractor provisions).
Genuine Crosby Quality: Look for the Red Pin® — the mark of authentic Crosby shackles. Specifications #g209a-specs {border-collapse:collapse;width:100%;font-size:14px;} #g209a-specs th,#g209a-specs td {border:1px solid #ccc;padding:8px;text-align:left;} #g209a-specs thead th {background:#f2f2f2;} @media (max-width:640px){#g209a-specs th,#g209a-specs td{padding:6px;}} Nominal Size (in)
WLL (t)
Stock No.
Weight (lb)
A
B
C
D
E
F
G
H
L
M
P
Tolerance (± in) C
A 3/8
2
1017450
0.31
0.66
0.44
1.44
0.38
1.03
0.91
1.78
2.49
0.25
2.03
0.38
0.13
0.06 7/16
2.67
1017472
0.38
0.75
0.50
1.69
0.44
1.16
1.06
2.03
2.91
0.31
2.38
0.44
0.13
0.06 1/2
3.33
1017494
0.63
0.81
0.63
1.88
0.50
1.31
1.19
2.31
3.28
0.38
2.69
0.50
0.13
0.06 5/8
5
1017516
1.38
1.06
0.75
2.38
0.63
1.69
1.50
2.94
4.19
0.44
3.34
0.69
0.13
0.06 3/4
7
1017538
2.35
1.25
0.88
2.81
0.75
2.00
1.81
3.50
4.97
0.50
3.97
0.81
0.25
0.06 7/8
9.5
1017560
3.61
1.44
1.00
3.31
0.88
2.28
2.09
4.03
5.83
0.50
4.50
0.97
0.25
0.06 1
12.5
1017582
5.32
1.69
1.13
3.75
1.00
2.69
2.38
4.69
6.56
0.56
5.07
1.06
0.25
0.06 1-1/8
15
1017604
7.25
1.81
1.25
4.25
1.16
2.91
2.69
5.16
7.47
0.63
5.59
1.25
0.25
0.06 1-1/4
18
1017626
9.88
2.03
1.38
4.69
1.29
3.25
3.00
5.75
8.25
0.69
6.16
1.38
0.25
0.06 1-3/8
21
1017648
13.25
2.25
1.50
5.25
1.42
3.63
3.31
6.38
9.16
0.75
6.84
1.50
0.25
0.13 Design Factor: 5:1. Proof Load = 2× WLL. Meets ASME B30.26 and Federal Specification RR-C-271H. For side-loading reductions and application limits, see manufacturer warnings.
