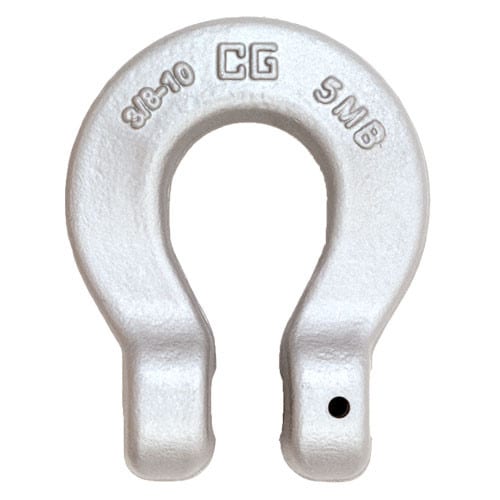

The Crosby 9/32" (1/4") S-1325A Grade 100 Chain Coupler – 4300 lbs WLL is part of the Crosby chain fitting range (catalogue no. 1098500). Sealinkers supplies it from Mumbai with documentation on request.
Features
- Designed to connect Grade 100 chain fittings produced with "Engineered Flat" to Grade 100 chain.
- Suitable for use with both Grade 80 and Grade 100 chain.
- Individually proof-tested at 2-1/2 times Working Load Limit with certification.
- Locking system that provides for simple assembly and disassembly…no special tools needed.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Forged alloy steel, Quenched and Tempered.
Specifications
| Crosby product no. | 1098500 |
|---|---|
| Catalogue description | S1325A 7MM (1/4") GR8/10 CHAIN COUPLER |
