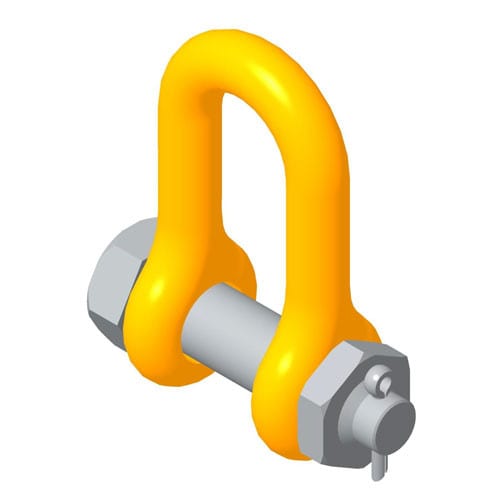

The SA shackle is a lifting shackle consisting of a U-shaped body, a bolt, a nut and a safety cotter pin
The SA shackle is designed, manufactured and tested to be a sling component in accordance to EN 1677-1 Type tests include deformation test, static tensile test and fatigue test
Gunnebo proof tests each shackle (100% of each lot) The SA shackle is marked as follows: On the bow: manufacturer identification (GBO or GBO SWE), product name, size and material Grade (8), CE mark, WLL in tons, batch/traceability code
On the bolt: material Grade (8), batch/traceability code Bolt, nut, and cotter pin type shackles like the SA Shackle provide the most secure type of connection. They are suitable for applications where the shackle is installed permanently or semi-permanently with infrequent removal. SA shackles are designed to be sling components and are suitable for use with Grade 80 chain slings of the proper size according to EN 818-4.
The SA Shackle can also be used in steel wire rope slings and textile slings. It can be used as an end component in slings or lugs. It can also be used as a connecting component in different constructions, provided that the necessary technical calculations have been taken into account, with regards to load and environmental factors.
