Crosby Straightpoint LP6.5T Loadpin – WLL 6.5mt #2789280

The Crosby Straightpoint LP6.5T Loadpin – WLL 6.5mt #2789280 is part of the Crosby lifting hardware range. Sealinkers supplies it from Mumbai with documentation on request.

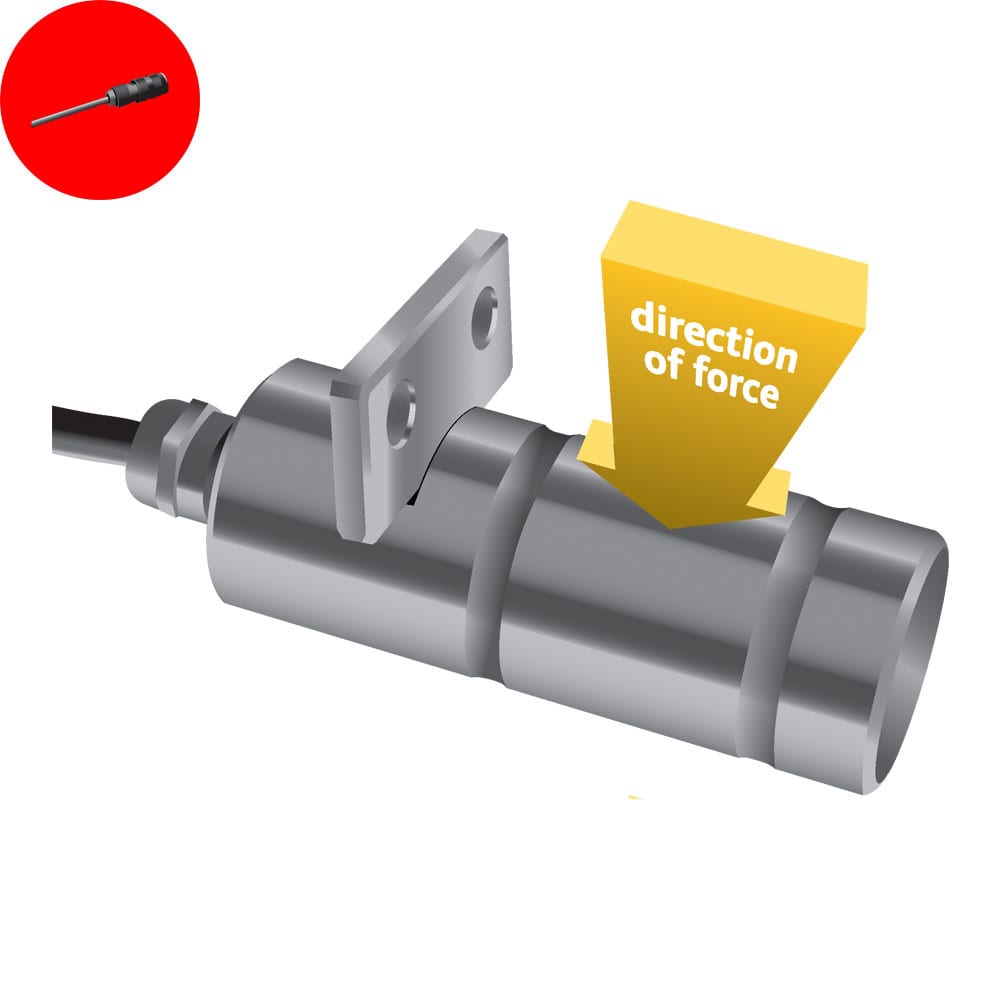

The Straightpoint range of Load Measurement Pins (LMP’s) are designed for use in applications where an end of line load cell cannot be used, meaning an integrated solution is required.
Often a customized solution, they are manufactured from high tensile stainless steel and are normally supplied complete with an anti-rotation plate as a cabled solution.
Built to withstand the harshest environments in industries such as marine and offshore oil and gas, they are suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths.
Straightpoint Loadpins are typically connected to Straightpoint’s Handheld plus, or may be supplied with a vast array of output formats. These include mV/V, RS-422, RS-485, utilizing the ASCII, MODBUS TRU and CAN-BUS protocols or an analogue output such as 4-20mA for PLC integration. All are also supplied with a 10 meter or 32ft cable as standard, however, usable cable length varies greatly with lengths available to 1500 meters or 4900ft, depending on output format.
Applications: Marine tankers, offshore platforms
Elevator and floor conveyor testing and certification
Bearing blocks, pivots and shackles
Cable laying equipment
Rope, chain and brake anchors
Bridge support cables
Mooring lines
Pulleys and sheaves
Crane cables
Hoisting gear
Winches
Design validated by F.E.A.

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
