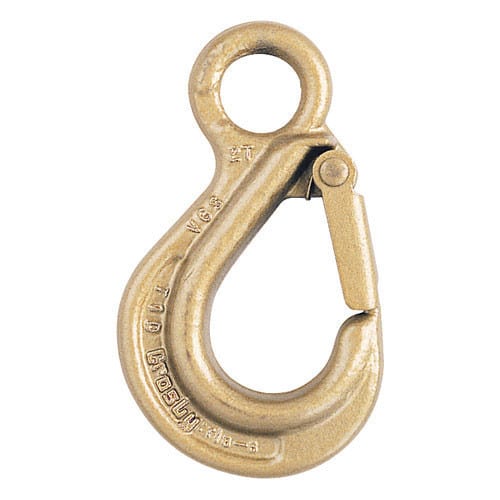

The Crosby S-315A 5/8" Grade 80 Eye Hook – 18100 lbs WLL is part of the Crosby hook range (catalogue no. 1029840). Sealinkers supplies it from Mumbai with documentation on request.
Forged alloy steel – Quenched & Tempered
Individually Proof Tested at 2-1/2 times the Working Load Limit with certification
Crosby recommends grinding the WLL (which is 5:1 Design Factor) off the hook when using with Grade 80 chain
Integrated heavy duty latch
Engineered flat for use with S-1325A Coupler Link
Meets ASTM A-952 for Grade 80 chain fittings
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
Specifications
| Crosby product no. | 1029840 |
|---|---|
| Catalogue description | S315A 16MM EYE HOOK W/LATCH GRADE 8 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
