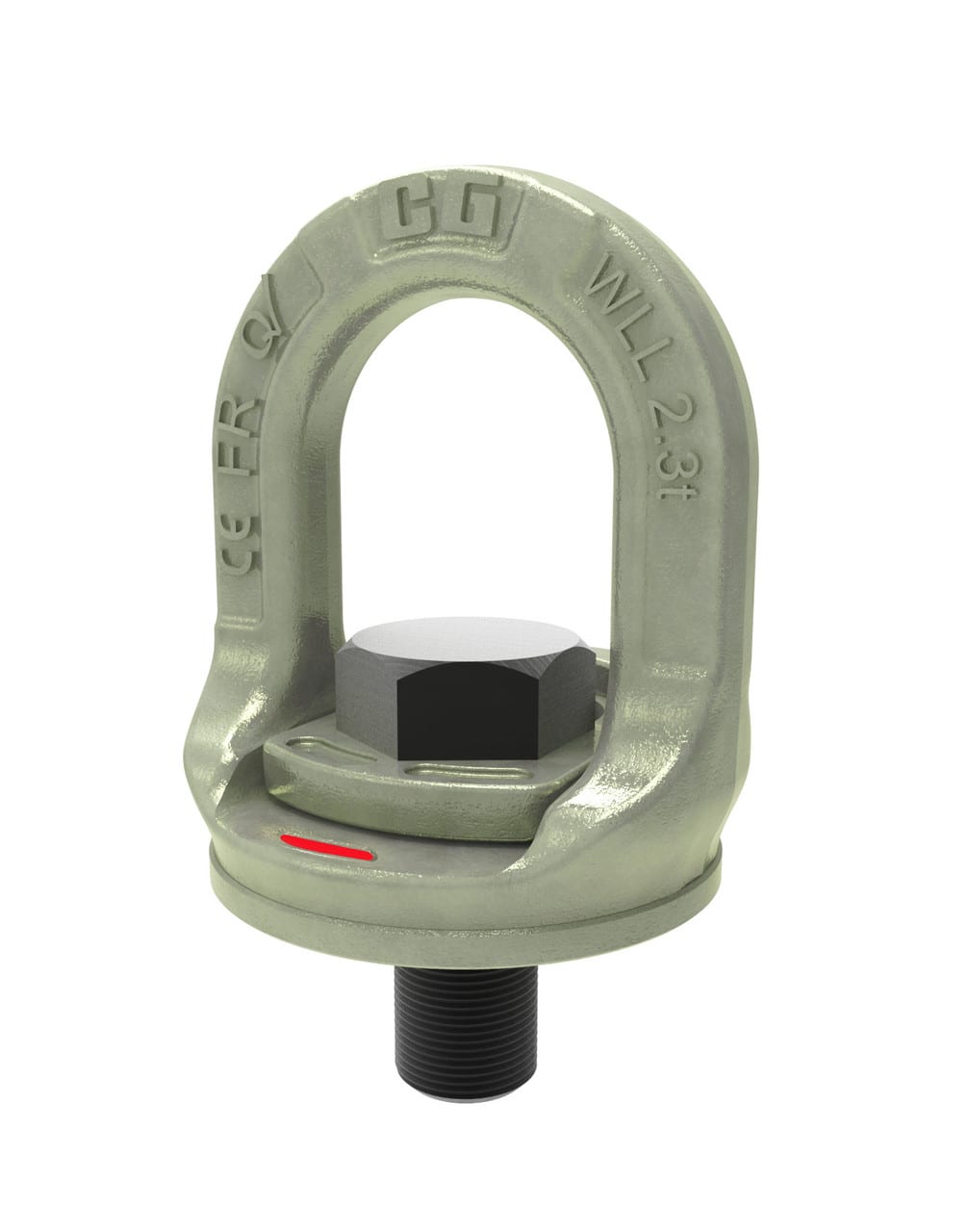

The Crosby M20 SL-150 Slide-Loc Lifting Point – 2.3T WLL is part of the Crosby lifting point range (catalogue no. 1068542). Sealinkers supplies it from Mumbai with documentation on request.
Crosby SL-150 Slide-Loc™ Lifting Point – Hybrid Alternative to Eye Bolts and Hoist Rings
The Crosby SL-150 Slide-Loc™ is a low-profile, high-strength lifting point that offers an excellent balance between performance and affordability. It’s designed for those who might otherwise consider a hoist ring but want a more economical solution—without resorting to traditional eye bolts, which are often unsafe for angular lifts. With 360° bail rotation and a tool-free slide-lock system, this forged alloy steel lifting point is ideal for a wide range of overhead lifting applications.
The SL-150’s Slide-Loc™ mechanism makes installation fast and simple, and the red QUIC-CHECK® indicator shows when the unit is securely engaged. Its full Working Load Limit (WLL) is maintained even at 90°, providing safety and versatility not possible with standard eye bolts. Available in both UNC and metric thread options, the SL-150 is widely used in steel fabrication, equipment manufacturing, OEM rigging, and more.
Key Features: Hybrid solution: A safer, more capable alternative to eye bolts—at a lower cost than hoist rings
360° rotation: Bail swivels to align with lifting slings and minimize side loading
Slide-Loc™ design: Quick and easy tool-free locking system
Forged alloy steel bail: Quenched and tempered for strength and fatigue resistance
QUIC-CHECK® visual indicator: Confirms proper engagement before each lift
Fatigue rated: Tested to 20,000 cycles at 1.5x WLL
Proof Tested: Each unit is individually proof tested to 2.5x the Working Load Limit, with certificates available Thread Size & Load Capacity Ranges: UNC Threads: Available from 3/8"-16 up to 1"-8
Metric Threads: Available from M10x1.5 up to M24x3
Working Load Limits: 0.5 ton to 3.2 tons (varies by thread size) Certifications & Safety: 4:1 design factor for rated Working Load Limits
CE marked and compliant with Machinery Directive 2006/42/EC
Fatigue rated to 20,000 cycles at 1.5x WLL Smart Rigging Starts Here
If you're using eye bolts for lifting or looking for an alternative to expensive hoist rings, the Crosby SL-150 Slide-Loc™ offers the safety, convenience, and value your job demands. It’s an excellent solution for applications involving angular loads, frequent lifting points, or the need for quick, tool-free attachment.
Specifications
| Crosby product no. | 1068542 |
|---|---|
| Catalogue description | SL150 SLIDE LOC M20 2,3T LIFTING POINT |
