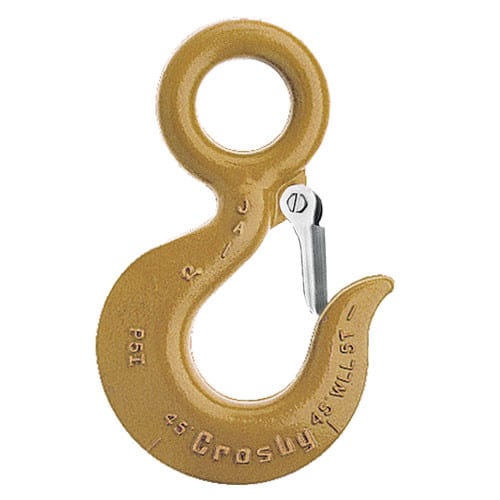

Crosby L-320A 30 Ton Alloy Eye Hoist Hook – #1022477

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby L-320A 30 Ton Alloy Eye Hoist Hook is part of the Crosby hook range (catalogue no. 1022477). Sealinkers supplies it from Mumbai with documentation on request.

Crosby L-320 Eye Hooks — Alloy Steel, Quic-Check® Equipped
Overview: Crosby L-320 alloy eye hooks are high-strength, load-rated hooks for demanding lifting applications, with Working Load Limits (WLL) from 1 to 60 tons. All models feature QUIC-CHECK® deformation and angle indicators for safer inspections and proper load alignment. The alloy L-320 series has a distinctive gold finish, while the painted carbon steel S-320 version, finished in red, is available by special order only and not sold on.
Latch Kits Included: Unlike older Crosby hooks which were sold without a latch, all L-320 alloy hooks now ship with the appropriate latch kit pre-installed at no extra cost. Replacement latch kits are also available if needed.
Why These Hooks Stand Out: Every hook is fatigue-rated to 20,000 cycles at 1.5× WLL and proof-tested to 2.5× WLL for 3/4T carbon through 22T alloy, or 2× WLL for 20T carbon through 60T alloy. Each hook undergoes chemical analysis and tensile testing for material verification, ensuring consistent performance. Alloy versions deliver higher strength-to-weight ratios for heavy-duty lifting.
Key Features: Load-rated with WLL markings for clear identification
Available in alloy steel (standard online) or carbon steel (special order)
QUIC-CHECK® deformation and angle indicators for enhanced safety
Fatigue-rated to 20,000 cycles at 1.5× WLL
Chemical and tensile tests performed on each PIC for quality assurance
Proof tested to 2.5× or 2× WLL depending on size
Ships with latch kit installed — S-4320 for 1T–22T hooks (new style) and SS-4055 for 30T–60T hooks (old style) Size Range: Alloy steel hooks available from 1 ton to 60 tons WLL.
Standards & Approvals: Meets or exceeds ASME B30.10 requirements; designed with a 5:1 design factor for alloy hooks up to 22T and a 4.5:1 factor for alloy hooks from 30T to 60T.
