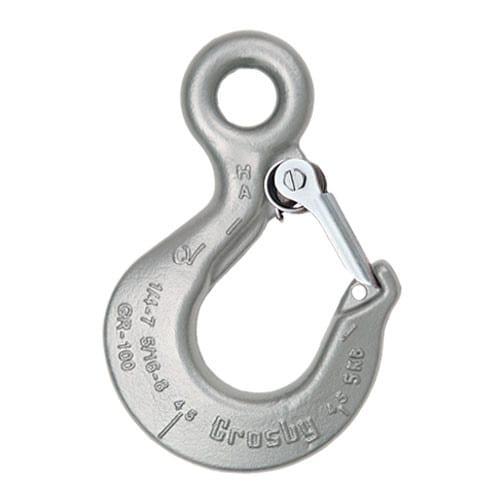

The Crosby L-1327 1-1/4" Grade 100 Eye Sling Hook w/ Latch – 90400 lbs WLL is part of the Crosby hook range (catalogue no. 1025942). Sealinkers supplies it from Mumbai with documentation on request.
For use with wire rope
Suitable for use with Grade 100 and Grade 80 chain
Working load limit needs to be de-rated to achieve a 5:1 design factor
Forged alloy steel, Quenched & Tempered
Each hook has a Product Identification Code (PIC) for material traceability, along with the size and the name Crosby
25% stronger than Grade 80
Eye Sling Hooks incorporate QUIC-CHECK® deformation and angle indicators (for detailed information, see the Crosby Value Added page in the Crosby catalog)
When secured with the proper cotter pin through the hole in the tip of hook, meets the intent of OSHA Rule 1926.1431(g) and 1926.1501(g) for personnel lifting
Individually Proof Tested to 2.5 times the Working Load Limit with certification
Fatigue rated to 20,000 cycles at 1.5 times the Working Load Limit.
Specifications
| Catalogue description | L1327 32MM 1-1/4" GR8/10 EYE SLING HOOK |
|---|---|
| Crosby product no. | 1025942 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
