Crosby IP IPSC10 3 Ton Screw Clamp – #2703858

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby IP IPSC10 3 Ton Screw Clamp is part of the Crosby lifting clamp range (catalogue no. 2703858). Sealinkers supplies it from Mumbai with documentation on request.

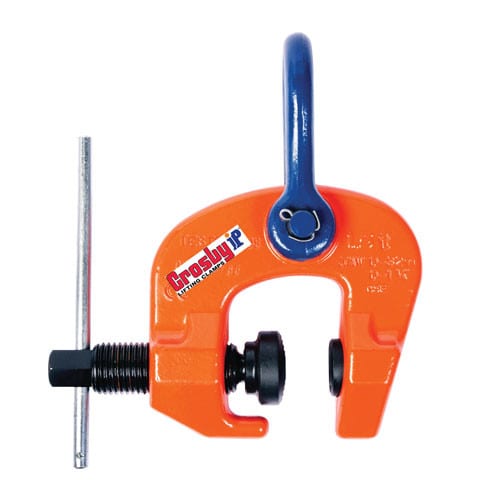

Crosby® IPSC10 Positioning & Turning Clamp
The Crosby® IPSC10 Clamp is engineered for the safe positioning, turning, and alignment of steel plates and sections—not for overhead lifting. Its forged alloy steel body delivers superior strength and compact size, making it ideal for fabrication shops, shipyards, and steel handling environments where controlled plate movement is required. Each clamp is proof-tested to twice its Working Load Limit (WLL) and includes full certification for traceability and compliance.
Available in 1.5 and 3 metric ton capacities, the IPSC10 features wide jaw openings to accommodate different plate thicknesses and is designed to meet EN 13155 and ASME B30.20 standards. Permanently stamped markings, serial numbers, and proof test dates ensure long-term reliability and easy inspection.
Key Features Positioning and turning clamp only – not rated for lifting.
Available capacities: 1.5 and 3 metric tons.
Forged alloy steel construction for strength and compact design.
Wide jaw opening up to 2.38" for versatility.
Individually proof-tested to 2× WLL, with test certificate included.
Permanent markings for WLL, jaw size, and serial number.
Temperature range: -40°F (-40°C) to +212°F (+100°C).
Manufactured in an ISO 9001 facility for consistent quality. Important: The IPSC10 is designed exclusively for positioning and turning operations. It must not be used for overhead lifting or load suspension.
Specifications Model
WLL (t)
Stock No.
Jaw Opening (in)
Weight (lb)
Maintenance Kit No.
Temp. Range (°F)
Compliance IPSC10
1.5
2703857
0 – 1.57
10.1
2715492
-40 to +212
EN 13155 / ASME B30.20 IPSC10
3.0
2703858
0 – 2.38
18.5
2715493
-40 to +212
EN 13155 / ASME B30.20 Design factor based on EN 13155 and ASME B30.20 standards. Each clamp is proof-tested to twice its rated Working Load Limit and includes certification.
