The Crosby IP IPPH 2 Ton Pipe Hook is part of the Crosby hook range (catalogue no. 2734500). Sealinkers supplies it from Mumbai with documentation on request.
Crosby IPPH Pipe Hooks – Horizontal Lifting of Pipe, Tube & Cylindrical Fabrications

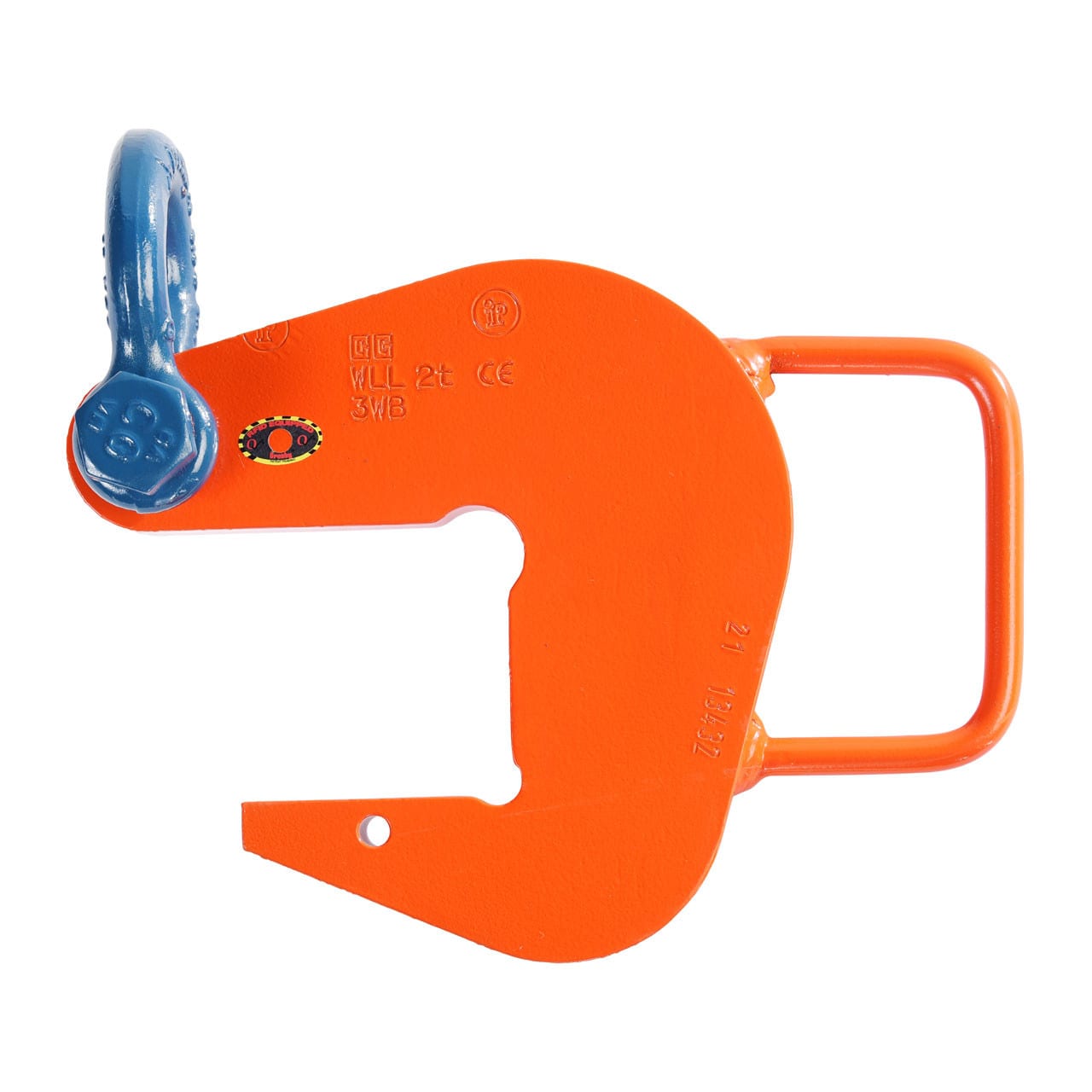

Crosby IPPH Pipe Hooks provide a fast, efficient, and safe way to lift and handle pipe, tube, or any similarly shaped fabrication. Built from high-strength alloy steel plate and designed for use in pairs, these hooks are ideal for horizontal lifting and transport when used with properly rated slings or chains. Each hook includes a convenient handle and bolt-type shackle, with optional non-marring nylon inserts available to help prevent surface damage to coated or threaded pipe.
Key Features: Purpose-Built Design – For horizontal lifting and transport of pipes, tubes, and round fabrications.
Heavy-Duty Construction – Alloy-steel plate body for superior strength and durability.
Convenient Handling – Integrated handle and bolt-type shackle simplify rigging.
Optional Inserts – Replaceable nylon (PA6) inserts minimize pipe damage (sold separately).
Temperature Range – –40 °F to +212 °F (–40 °C to +100 °C).
Use in Pairs – Hooks are sold individually but must be used in matched pairs with a 45°–60° horizontal sling angle (60°–90° included angle).
Compliance – Designed in accordance with EN13155 and ASME B30.20. Important: Crosby IPPH hooks are designed specifically for horizontal lifting of pipe and similar round objects. Each hook is sold individually and must be used in pairs for lifting. Never attach chains or cables to the handle. Always verify sling angle and load rating before use. Optional nylon insert sets (IPPHI Series) are sold separately.
Specifications Model
Stock No.
WLL per Pair (tons)
Weight Each (lb)
Grip Opening (in.)
Shackle Size (in.)
Optional Insert Model IPPH 2
2734500
2
5.95
2.06
5/8
2734900 IPPH 4
2734509
4
9.92
2.81
5/8
2734909 IPPH 6
2734518
6
16.98
4.06
3/4
2734918 IPPH 10
2734527
10
38.14
6.06
1
2734927 IPPH 15
2734536
15
48.06
6.06
1 ⅛
2734936 IPPH 20
2734545
20
50.93
6.06
1 ⅛
2734936 *Working Load Limit (WLL) is for a pair of hooks. Hooks are sold individually and must be used in pairs for rated capacity. Design factor per EN13155 and ASME B30.20. Optional inserts sold separately.
Specifications
| Catalogue description | IPPH 2T PIPE HOOK |
|---|---|
| Crosby product no. | 2734500 |
