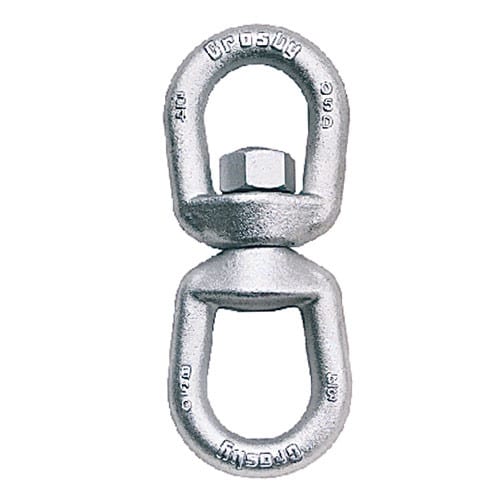

The Crosby G-402 5/8" Eye & Eye Swivel – 5200 lbs WLL is part of the Crosby swivel range (catalogue no. 1016091). Sealinkers supplies it from Mumbai with documentation on request.
Crosby 402 and 403 forged swivels are positioning devices and are not intended to rotate under load
Hot-dip galvanized
Quenched & Tempered
Crosby products meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements Importantly, Crosby products meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26 G-402 swivels meet the performance requirements of Federal Specification RR-C-271G, Type VII, Class 2, except for those provisions required of the contractor
G-403 swivels meet the performance requirements of Federal Specification RR-C-271G, Type VII, Class 3, except for those provisions required of the contractor.
Specifications
| Catalogue description | G402 5/8 REGULAR SWIVEL 16MM GALVANISED |
|---|---|
| Crosby product no. | 1016091 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
