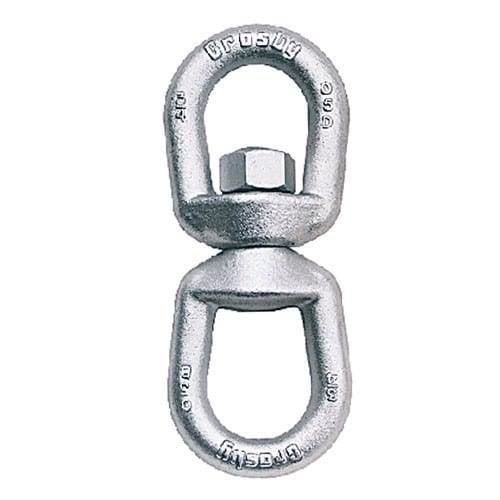

Crosby G-402 1″ Eye & Eye Swivel – 12500 lbs WLL – #1016153
- Proof-load tested on request, up to 1,200 T
- Test certificate with every item
- IRS · ABS · LRS · BV certification
- Price, stock and lead time within one working day
Crosby 402 and 403 forged swivels are positioning devices and are not intended to rotate under load
Hot-dip galvanized
Quenched & Tempered
Crosby products meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements…
Request a quote
Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.
The Crosby G-402 1" Eye & Eye Swivel – 12500 lbs WLL is part of the Crosby swivel range (catalogue no. 1016153). Sealinkers supplies it from Mumbai with documentation on request.
Crosby 402 and 403 forged swivels are positioning devices and are not intended to rotate under load
Hot-dip galvanized
Quenched & Tempered
Crosby products meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements Importantly, Crosby products meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26 G-402 swivels meet the performance requirements of Federal Specification RR-C-271G, Type VII, Class 2, except for those provisions required of the contractor
G-403 swivels meet the performance requirements of Federal Specification RR-C-271G, Type VII, Class 3, except for those provisions required of the contractor.
Specifications
| Crosby product no. | 1016153 |
|---|---|
| Catalogue description | G402 1 REGULAR SWIVEL 25MM GALVANIZED |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
