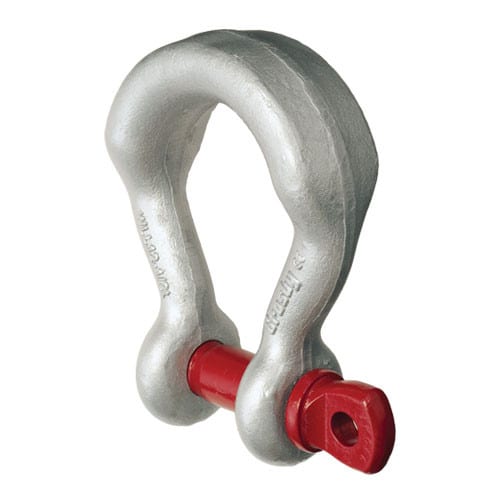

The Crosby G-2169 Wide Body Sling Shackle – 18 Ton WLL is part of the Crosby shackle range (catalogue no. 1021691). Sealinkers supplies it from Mumbai with documentation on request.
Crosby G-2169 Wide Body Sling Shackles – Galvanized Alloy Steel, Screw Pin
The Crosby G-2169 Wide Body Shackles are purpose-built sling shackles designed with a wider bearing surface to improve sling efficiency and reduce point loading on synthetic and wire rope slings. These shackles provide performance similar to the G-2160 series but are available in three popular sizes with favorable pricing, making them an excellent option for everyday rigging and sling connections.
Manufactured from forged alloy steel and quenched & tempered for maximum strength, the G-2169 shackles are supplied with a durable galvanized finish. Each shackle features Crosby’s trusted engineering and quality control, including traceability and rigorous performance standards.
Key Features: Wide body sling shackle design increases bearing surface for improved sling efficiency
Quenched & tempered forged alloy steel construction for maximum strength
Hot-dip galvanized finish for corrosion resistance
Working Load Limit permanently shown on every shackle
Proof testing and magnetic particle inspection available upon request
Crosby certification available at time of order
Meets or exceeds all requirements of ASME B30.26
Also meets additional performance requirements including fatigue life, impact properties, and material traceability
Look for the Red Pin® — the mark of genuine Crosby quality Important: For side loading or non-inline loading conditions, Working Load Limits may require reduction. Always follow proper rigging practices and manufacturer recommendations.
Specifications – Crosby G-2169 Wide Body Shackles Stock No.
WLL (tons)
Throat Opening (in.)
Pin Diameter (in.)
Bail Width/Depth (in.)
Bail Radius (in.)
Weight (lbs) 1021655
7
1.25
0.88
1.60
1.25
3.5 1021673
12.5
1.69
1.16
2.13
1.63
8.8 1021691
18
2.03
1.41
2.50
2.00
13 All dimensions are in inches. Working Load Limits are rated in metric tons. Wide body shackles provide increased bearing surface to improve sling efficiency and reduce wear on slings.
Specifications
| Catalogue description | G2169 18T SCREW PIN WIDE BODY SHKL |
|---|---|
| Crosby product no. | 1021691 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
