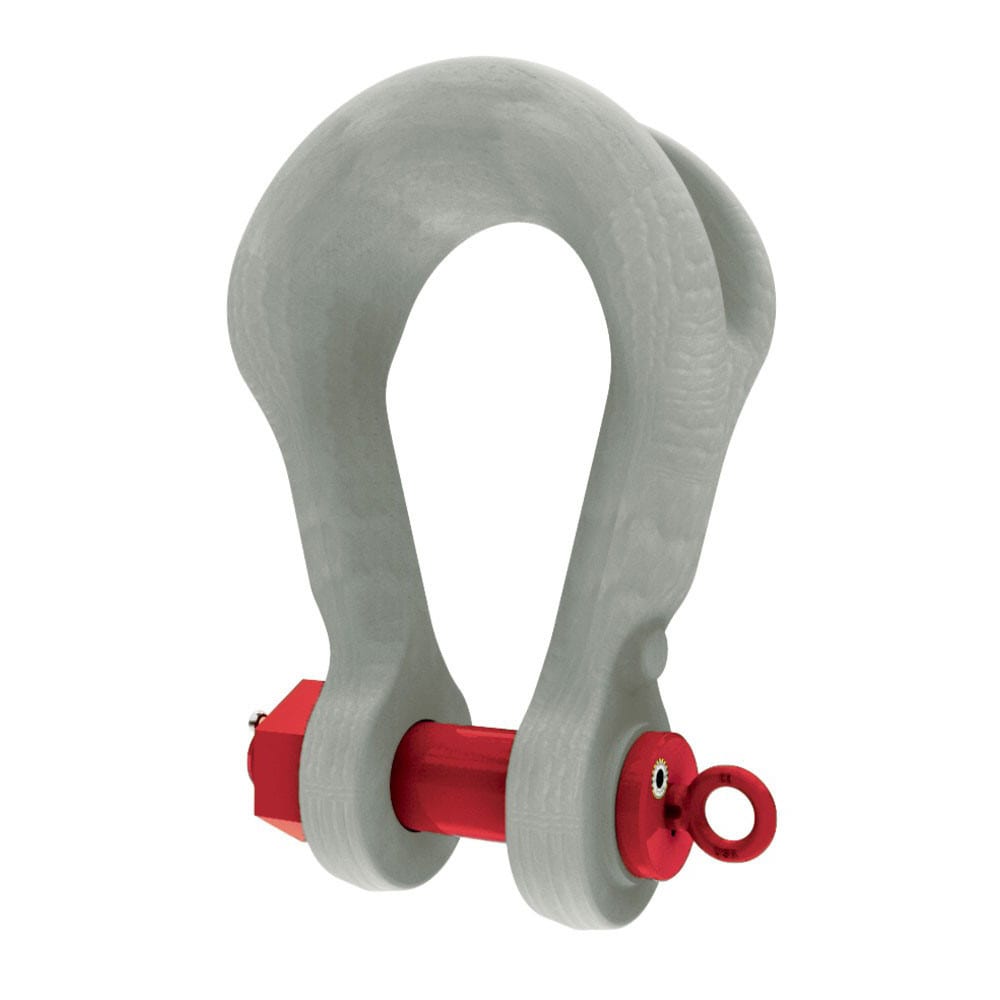

The Crosby G-2160 Wide Body Sling Shackle – 30 Ton WLL is part of the Crosby shackle range. Sealinkers supplies it from Mumbai with documentation on request.
Redesigned Crosby G-2160 Wide Body Shackles – Maximum Sling Efficiency, Safety & Load Monitoring
The redesigned Crosby G-2160 Wide Body Shackles are engineered for extreme lifting challenges, offering a full range of sizes from 7 to 2000 metric tons. With the widest bow on the market, these shackles improve sling efficiency and allow for smaller sling sizes. Enhanced with three ergonomic lift points, bow-to-bow compatibility across all sizes, and optional Easy-Loc™ bolt securement</strong (75t–600t), the G-2160 series improves rigging safety and setup speed. All models are factory-ready for Crosby Straightpoint load monitoring integration and undergo rigorous, comprehensive testing.
Key Features Full Capacity Range: Available from 7 to 2000 metric tons to meet diverse heavy lift requirements.
Widest Bow Design: load surface area for improved sling efficiency and smaller sling sizing.
Bow-to-Bow Compatibility: Compatible across all sizes—unique to Crosby’s G-2160 lineup.
Enhanced Handling: Three lift points—center rib, bow, and both sides of pin—maximize control and ergonomics.
Recessed Center Rib: Reduces snags and simplifies balanced assembly with a removable lifting point.
Anti-Rotation Bolt Head: Prevents unwanted movement during installation for safer, faster rigging.
Optional Easy-Loc™ System: Available for 75t–600t models, including redesigned 400t, 500t, and 600t versions; reduces install/removal time by up to 90%.
Straightpoint-Ready: Factory-shipped ready to accept Crosby SP load pins for real-time load monitoring.
Permanent Raised Markings: Forged-in for clear, lasting traceability and easy inspection.
Comprehensive Testing: Each shackle undergoes 100% production testing: ultrasonic, magnetic particle, chemical, mechanical, and visual inspection.
DNV Type Approved: Certified for safety-critical lifting in offshore, energy, and industrial applications. Proof Load Ratings & Design Factor Design Factor: 5:1
Proof Load (7t–300t): Tested to 2x Working Load Limit
Proof Load Exception: 125t size is proof tested to 1.6x Working Load Limit
Proof Load (400t–2000t): Maximum customer proof load is 1.5x WLL (2x WLL available by special request at time of order) Additional Specifications Easy-Loc™ Compatibility: Offered for sizes 75t to 600t
Load Monitoring Ready: Compatible with Crosby Straightpoint wireless load pins
Finish: Galvanized or painted, varies by size and configuration Note: For applications requiring specific proof load certification, Easy-Loc™ installation, or integrated load monitoring, please indicate requirements when placing your order.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
