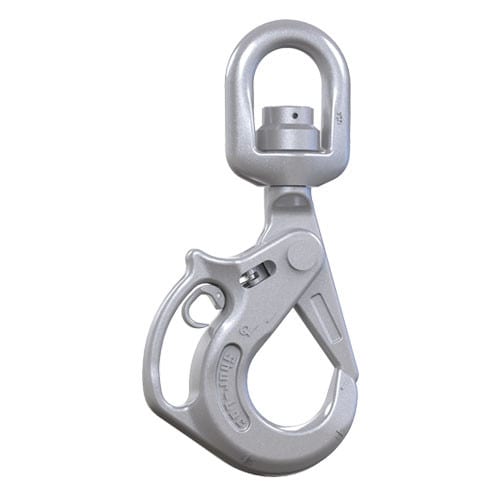

Crosby 5/8″ S-13326AH Shur-Loc Grade 100 Self-Closing Swivel Handle Hook – 22600 lbs WLL – #1005014

The Crosby 5/8" S-13326AH Shur-Loc Grade 100 Self-Closing Swivel Handle Hook – 22600 lbs WLL is part of the Crosby hook range (catalogue no. 1005014). Sealinkers supplies it from Mumbai with documentation on request.

The Crosby S-13326AH SHUR-LOC® Handle Swivel Hook brings flexibility and control to demanding lifting operations. Outfitted with an internal anti-friction bearing, this swivel hook rotates freely under load—making it easier to align and position heavy loads during lifts.
Built from quenched and tempered alloy steel, the S-13326AH features a wide, ergonomic handle for gloved use, a recessed secondary trigger to prevent accidental openings, and a replaceable pull trigger for serviceability. It’s rated for both wire rope and Grade 100 chain and meets OSHA standards for personnel lifting when installed and locked correctly.
Features & Benefits: Swivel eye with internal bearing allows smooth, free rotation under load.
Self-locking latch automatically secures the load when engaged.
Ergonomic safety handle ensures a confident grip in all conditions.
Forged alloy steel body for maximum strength and durability.
Fatigue rated to 20,000 cycles at 1.5x WLL and proof tested to 2.5x WLL.
OSHA compliant for personnel lifting under Rule 1926.1431(g)(1)(i)(A). Specifications: Chain Size Range: 5/8" to 1"
Working Load Limit: 22,600 – 59,700 lbs
Design Factor: 4:1 The S-13326AH swivel hook offers the flexibility and safety features needed for precision lifting and rotation-intensive operations—all backed by Crosby’s proven quality.

Specifications

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
