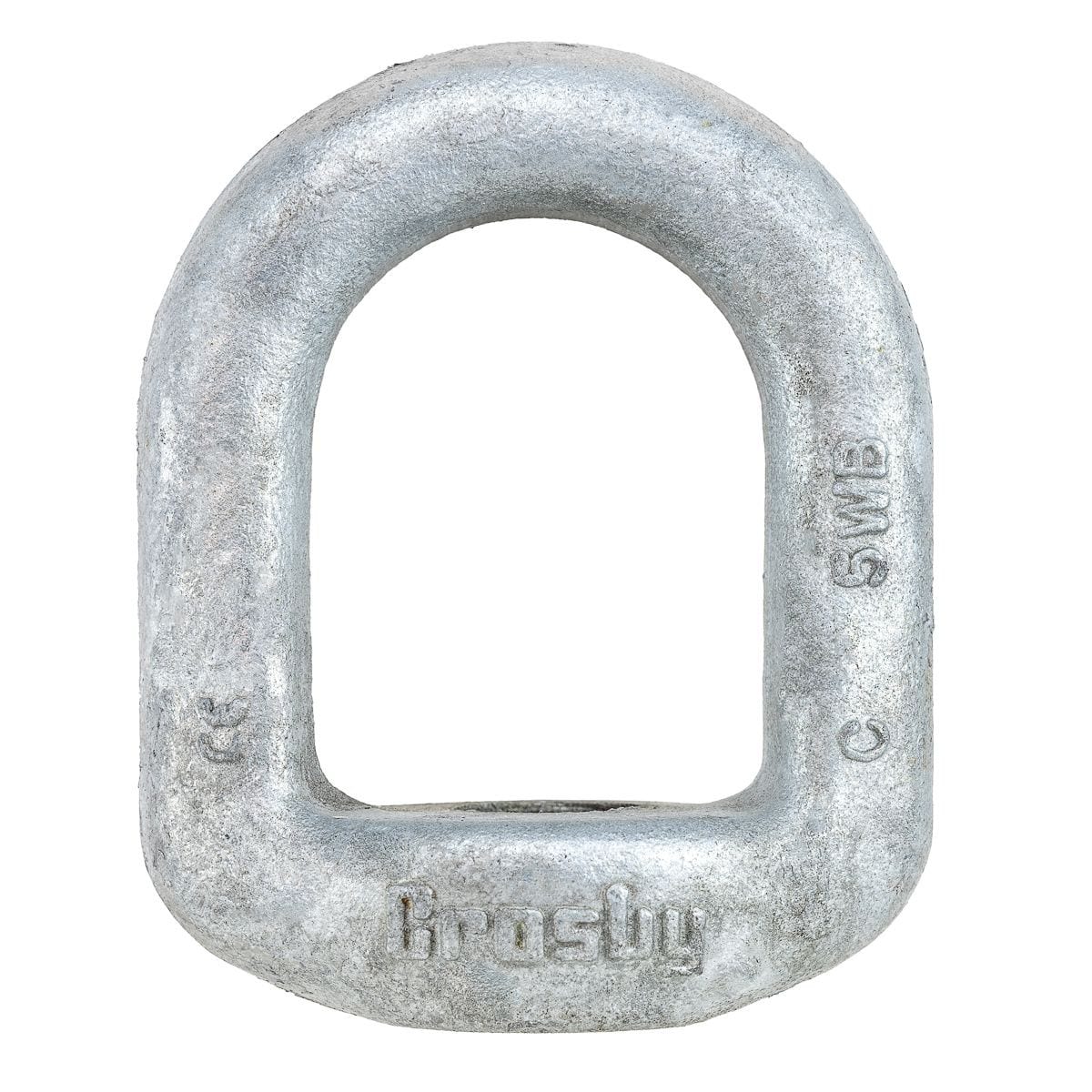

Crosby 2″ Tap G-400 Eye Nut – 40000 lbs WLL – #1090697

The Crosby 2" Tap G-400 Eye Nut – 40000 lbs WLL is part of the Crosby eye nut range (catalogue no. 1090697). Sealinkers supplies it from Mumbai with documentation on request.

Crosby® G-400 Eye Nuts – Hot-Dip Galvanized, UNC Tapped (ASME B30.26)
The Crosby G-400 Eye Nut is a forged, hot-dip galvanized lifting point designed for reliable performance in industrial rigging, construction, and material handling applications. Manufactured from 1035 carbon steel and quenched and tempered, each eye nut is tapped with standard UNC Class 2 threads after galvanizing to ensure accurate fitment and corrosion resistance. All Working Load Limits (WLL) shown are for in-line pull only.
Key Features: Forged steel construction – quenched and tempered for strength and durability
Forged from 1035 carbon steel
Hot-dip galvanized finish for corrosion resistance in harsh environments
Tapped with standard UNC Class 2 threads after galvanizing
Meets or exceeds all requirements of ASME B30.26
5:1 design factor; WLL shown is for in-line pull only (rating based on standard tap size)
Also available in a blank (as-forged) version – Crosby S-4028 Pro Tip: Galvanized compatibility: Galvanized eye nuts are intended for use with self-colored and/or zinc-plated rods. They are not cut oversized for use on galvanized rods.
Size identification: A common mistake is confusing the stock size (“S”) marked on the body with the tap size. These are different—always reference the tap size to ensure proper fitment. Specifications – Crosby G-400 Eye Nuts Stock No.
Size No.
Stock/Body Size (in.)
Tap Size (in.)
WLL (lbs)
Weight (lbs) 1090438
1
0.25
1/4
520
0.09 1090474
2
0.31
3/8
1,250
0.17 1090517
3A
0.38
1/2
2,250
0.28 1090535
4
0.50
5/8
3,600
0.60 1090553
5
0.63
3/4
5,200
1.00 1090571
6
0.75
7/8
7,200
1.65 1090599
7
0.88
1
10,000
2.69 1090633
8
1.00
1-1/4
15,500
4.38 1090651
9
1.13
1-3/8
18,500
5.00 1090679
10
1.25
1-1/2
22,500
6.78 1090697
11
1.50
2
40,000
14.60 All dimensions are in inches. Working Load Limits (WLL) are based on a 5:1 design factor per ASME B30.26 and apply to in-line pull only.

Specifications

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
