The Crosby 1/2" S-247 Grade 43 Double Clevis Link – 9200 lbs WLL is part of the Crosby link range (catalogue no. 1013085). Sealinkers supplies it from Mumbai with documentation on request.

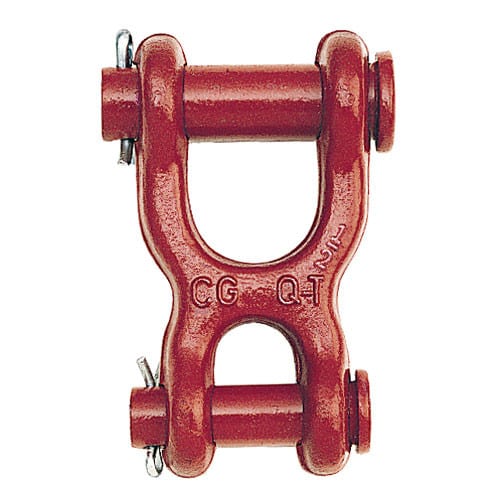

Crosby S-247 Double Clevis Link
The Crosby S-247 Double Clevis Link is a forged, heat-treated carbon steel connector designed for joining chain to various types of hardware, such as rings, eye hooks, pad eyes, or tractor eye bolts. Its design allows for a quick and secure assembly while maintaining reliable performance in load securement applications.
Key Features Forged and heat-treated carbon steel body with alloy steel pins, quenched and tempered for strength.
“Double clevis” design includes one wide jaw and one standard jaw, allowing for easy connection between chain and bulkier fittings like eye bolts or rings.
Wide-jaw geometry helps prevent side loading when connecting chain to larger hardware.
Quick and simple pin assembly—no tools required for field installation.
Suitable for connecting Grade 3 and Grade 4 chain to eye-type fittings.
4:1 design factor; ultimate strength is four times the Working Load Limit (WLL). Size & Capacity Range Available chain sizes: 1/4" through 1/2"
Working Load Limit (WLL): 2,600 lbs to 9,200 lbs Important: Crosby S-247 Double Clevis Links are intended for load securement only. Not for overhead lifting applications.
Not for use with Grade 80 or Grade 100 chain.
Use only in straight-line tension—avoid side loading. Typical Applications Connecting transport chain to anchor points or rings
Securing loads in agricultural or forestry equipment
General-purpose chain connections in non-lifting environments.
Specifications
| Catalogue description | S247 13MM 1/2" DOUBLE CLEVIS LINK |
|---|---|
| Crosby product no. | 1013085 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
