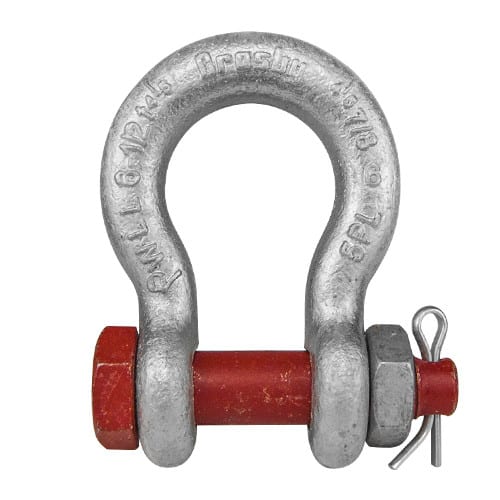

The Crosby 1-3/8" G-2130 Bolt Type Anchor Shackle – 13-1/2 Ton WLL is part of the Crosby shackle range. Sealinkers supplies it from Mumbai with documentation on request.
Crosby G-2130 Bolt Type Anchor Shackles
Crosby G-2130 Bolt Type Anchor Shackles are forged, quenched & tempered Grade 6 shackles with an alloy bolt, nut, and cotter pin for secure, semi-permanent rigging connections. Each unit is proof-tested, fatigue rated, and built to exceed industry standards for strength, consistency, and traceability. The G-series shackles feature the iconic Red Pin®—your mark of genuine Crosby quality. Features Permanent Identification: Working Load Limit and Grade 6 markings shown on every shackle.
Forged, Quenched & Tempered: High-strength alloy steel body with alloy bolts for maximum toughness and reliability.
Finish Options: Hot-dip galvanized (G) stocked for corrosion resistance; self-colored (S) available by special order. 85 t, 120 t and 150 t shackles feature hot-dip galvanized bows with Dimetcoted® and red-painted bolts.
Small Sizes: Sizes 3/8″ and below are mechanically galvanized.
Fatigue Rated: Tested to 20 000 cycles at 1.5 × WLL (1/3 t – 55 t) for long service life.
Temperature Range: Approved for use from −40 °F (−40 °C) to 400 °F (204 °C).
Standards Compliance: Meets or exceeds ASME B30.26 requirements.
Proof Testing: Shackles 85 metric tons and larger are individually proof-tested to 2 × WLL.
Type Approval: Certified in accordance with ABS 2016 Steel Vessel Rules and ABS Guide for Certification of Lifting Appliances. Certificates available upon request (additional charges may apply).
3.1 Certification: Standard charpy and statistical proof test documentation available from 3.25 t to 25 t to DNV 2.7-1 and EN 13889.
DNV Type Approved Models: Crosby 3.25 t through 25 t G-2130OC anchor shackles are type-approved to DNV Certification Notes 2.7-1 for Offshore Containers. These shackles are statistical proof- and impact-tested to 31 ft-lb (42 J) avg at −4 °F (−20 °C) with 3.1 test certification available on request.
Optional Charpy Testing: All other G-2130 shackles can be charpy tested to 31 ft-lb (42 J) avg at −4 °F (−20 °C) upon request at time of order.
Federal Specification Compliance: Meets RR-C-271H, Type IVA, Grade A, Class 3 (except contractor provisions).
Genuine Crosby Quality: Look for the Red Pin® — the mark of authentic Crosby manufacture and performance. Specifications #g2130-specs {border-collapse:collapse;width:100%;font-size:14px;} #g2130-specs th,#g2130-specs td {border:1px solid #ccc;padding:8px;text-align:left;} #g2130-specs thead th {background:#f2f2f2;} @media (max-width:640px){#g2130-specs th,#g2130-specs td{padding:6px;}} Nominal Size (in)
WLL (t)
Stock No. (G-2130)
Weight (lb)
A
B
C
D
E
F
H
L
M
N 3/16
0.33
1019464
0.06
0.38
0.25
0.88
0.19
0.60
0.56
1.47
0.98
1.29
0.19 1/4
0.5
1019466
0.11
0.47
0.31
1.13
0.25
0.78
0.61
1.84
1.28
1.56
0.25 5/16
0.75
1019468
0.22
0.53
0.38
1.22
0.31
0.84
0.75
2.09
1.47
1.82
0.31 3/8
1
1019470
0.33
0.66
0.44
1.44
0.38
1.03
0.91
2.49
1.78
2.17
0.38 7/16
1.5
1019471
0.49
0.75
0.50
1.69
0.44
1.16
1.06
2.91
2.03
2.51
0.44 1/2
2
1019472
0.79
0.81
0.64
1.88
0.50
1.31
1.19
3.28
2.31
2.80
0.50 5/8
3.25
1019490
1.68
1.06
0.77
2.38
0.63
1.69
1.50
4.19
2.94
3.56
0.69 3/4
4.75
1019515
2.72
1.25
0.89
2.81
0.75
2.00
1.81
4.97
3.50
4.15
0.81 7/8
6.5
1019533
3.95
1.44
1.02
3.31
0.88
2.28
2.09
5.83
4.03
4.82
0.97 1
8.5
1019551
5.66
1.69
1.15
3.75
1.00
2.69
2.38
6.56
4.69
5.39
1.06 1-1/8
9.5
1019579
8.27
1.81
1.25
4.25
1.13
2.91
2.69
7.47
5.16
5.90
1.25 1-1/4
12
1019597
11.71
2.03
1.40
4.69
1.29
3.25
3.00
8.25
5.75
6.69
1.38 1-3/8
13.5
1019613
15.83
2.25
1.53
5.25
1.42
3.63
3.31
9.16
6.38
7.21
1.50 1-1/2
17
1019631
19.00
2.38
1.66
5.75
1.53
3.88
3.63
10.00
6.88
7.73
1.62 1-3/4
25
1019659
33.91
2.88
2.04
7.00
1.84
5.00
4.19
12.34
8.80
9.68
2.25 2
35
1019677
52.25
3.25
2.30
7.75
2.08
5.75
4.81
13.68
10.15
10.81
2.40 2-1/2
55
1019695
98.25
4.13
2.80
10.50
2.71
7.25
5.69
17.90
12.75
13.58
3.13 3
85
1019711
154
5.00
3.30
13.00
3.12
7.88
6.50
21.50
14.62
15.13
3.62 3-1/2
120
1019739
265
5.25
3.76
14.63
3.62
9.00
8.00
24.88
17.02
17.00
4.38 4
150
1019757
338
5.50
4.26
14.50
4.00
10.00
9.00
25.68
18.00
17.75
4.56 Design Factor: 6:1. Proof Load = 2× WLL. Meets ASME B30.26 and Federal Specification RR-C-271H. Operating range −40 °F to 400 °F.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
