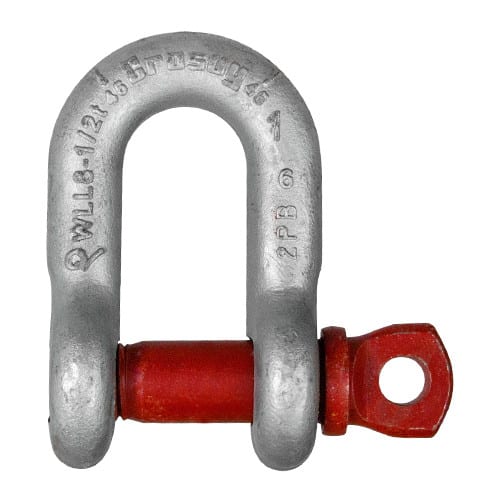

The Crosby 1-3/8" G-210 Screw Pin Chain Shackle – 13-1/2 Ton WLL is part of the Crosby shackle range (catalogue no. 1019374). Sealinkers supplies it from Mumbai with documentation on request.
Crosby G-210 Screw Pin Chain Shackles – Straight-Side, Galvanized, USA-Made
The Crosby G-210 Straight-Side Screw Pin Chain Shackle is a reliable, high-strength rigging solution for in-line connections where space is limited. Featuring a narrow, straight-sided body and Crosby’s signature Red Pin® alloy screw pin, each shackle is forged, quenched, and tempered for strength and durability. The G-210 is hot-dip galvanized and proudly made in the USA, with the Working Load Limit (WLL) and Grade 6 permanently marked on every shackle.
This shackle is fatigue rated to 20,000 cycles at 1.5x WLL and meets or exceeds the performance requirements of ASME B30.26 and Federal Spec RR-C-271H. It is approved for use in a wide temperature range from -40°F to 400°F. Optional certifications (e.g., ABS, DNV, Lloyds) and proof testing are available upon request (additional charges may apply).
Size Range & Working Load Limits Available Sizes: 1/4" to 2-1/2"
Working Load Limit (WLL): 0.5 tons to 55 tons
Design Factor: 6:1 Key Features Straight-side body: Ideal for chain applications and straight-line loading
Hot-dip galvanized finish: Provides long-lasting corrosion resistance
Red Pin® alloy screw pin: For secure and easy-to-identify connections
Fatigue rated and traceable: Each shackle marked with WLL and Grade 6
Temperature range: Approved for use from -40°F to 400°F
Made in the USA: Quality you can trust from Crosby Note: The S-210 self-colored version is available by special order. Please contact us for lead times and pricing.
Choose the Crosby G-210 chain shackle for mission-critical rigging applications where safety, strength, and certification options matter most.
Specifications
| Catalogue description | G210 13-1/2T 1-3/8" SCREW PIN D-SHACKLE |
|---|---|
| Crosby product no. | 1019374 |
