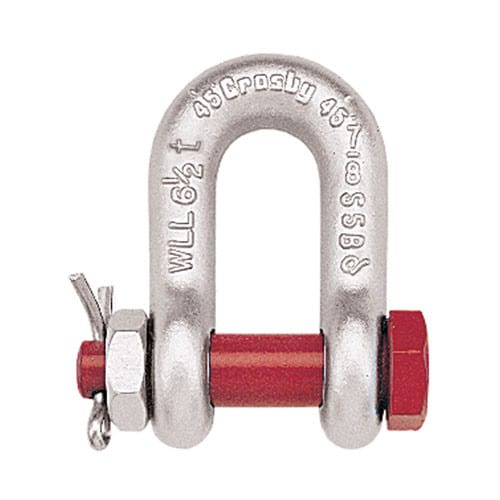

The Crosby 1-3/4" G-2150 Bolt Type Chain Shackle – 25 Ton WLL is part of the Crosby shackle range (catalogue no. 1019953). Sealinkers supplies it from Mumbai with documentation on request.
Working Load Limit and Grade 6 permanently shown on every shackle
Forged, Quenched & Tempered, with alloy pins
Hot-dip galvanized (G) 85 ton shackles have hot-dip galvanized bows and the bolts are Dimetcoted® and painted red Sizes 3/8" and below are mechanically galvanized
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit (1/2t – 55t)
Shackles 25t and larger are RFID equipped
Approved for use at -40° C (-40 degrees F) to 204° C (400° F)
Meets or exceeds all requirements of ASME B30.26
Sizes 1/2 – 25t meet the performance requirements of EN13889:2003
Shackles 55 metric tons and smaller can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification when requested at time of order
Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliance; certificates available when requested at time oforder and may include additional charges
Meets the performance requirements of Federal Specification RR-C-271G, Type IVB, Grade A, Class 3,except for those provisions required of the contractor
All 2150 shackles can meet charpy requirements of 42 Joules (31 ft-lb) avg at -20° C (-4° F) upon special request
Look for the Red Pin®… the mark of genuine Crosby quality.
Specifications
| Crosby product no. | 1019953 |
|---|---|
| Catalogue description | G2150 25T BOLT TYPE D-SHACKLE 1-3/4" |
