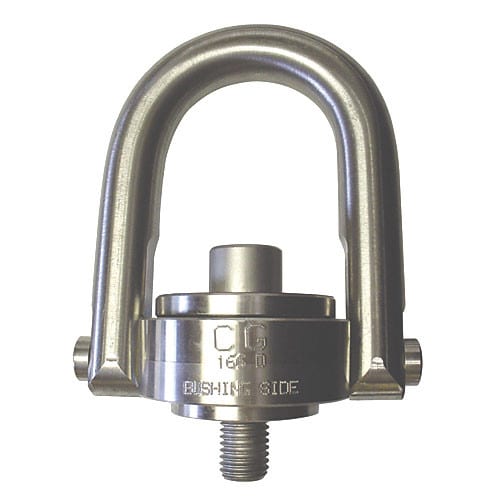

The Crosby 1-1/4"-7 x 1.89" SS-125UNC Stainless Steel Swivel Hoist Ring – 7500 lbs WLL is part of the Crosby swivel range (catalogue no. 1065080). Sealinkers supplies it from Mumbai with documentation on request.
Features
- All components are 316 stainless (except bolt retainers which are made of 15-7 PH magnetic stainless steel).
- Rated at 100% at 90º angle.
- Individually proof-tested to 2 times the Working Load Limit with certification.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Marked with a Product Identification Code (PIC) for traceability, top washer is color-coded (red for UNC threads).
- Bolt specification is 316 stainless steel socket head cap screw to ASTM F 837 Group 1 (316)360º swivel and 180º pivot action.
Specifications
| Crosby product no. | 1065080 |
|---|---|
| Catalogue description | SS125 1 1/4X1.89 STAINLESS STEEL SHR |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
