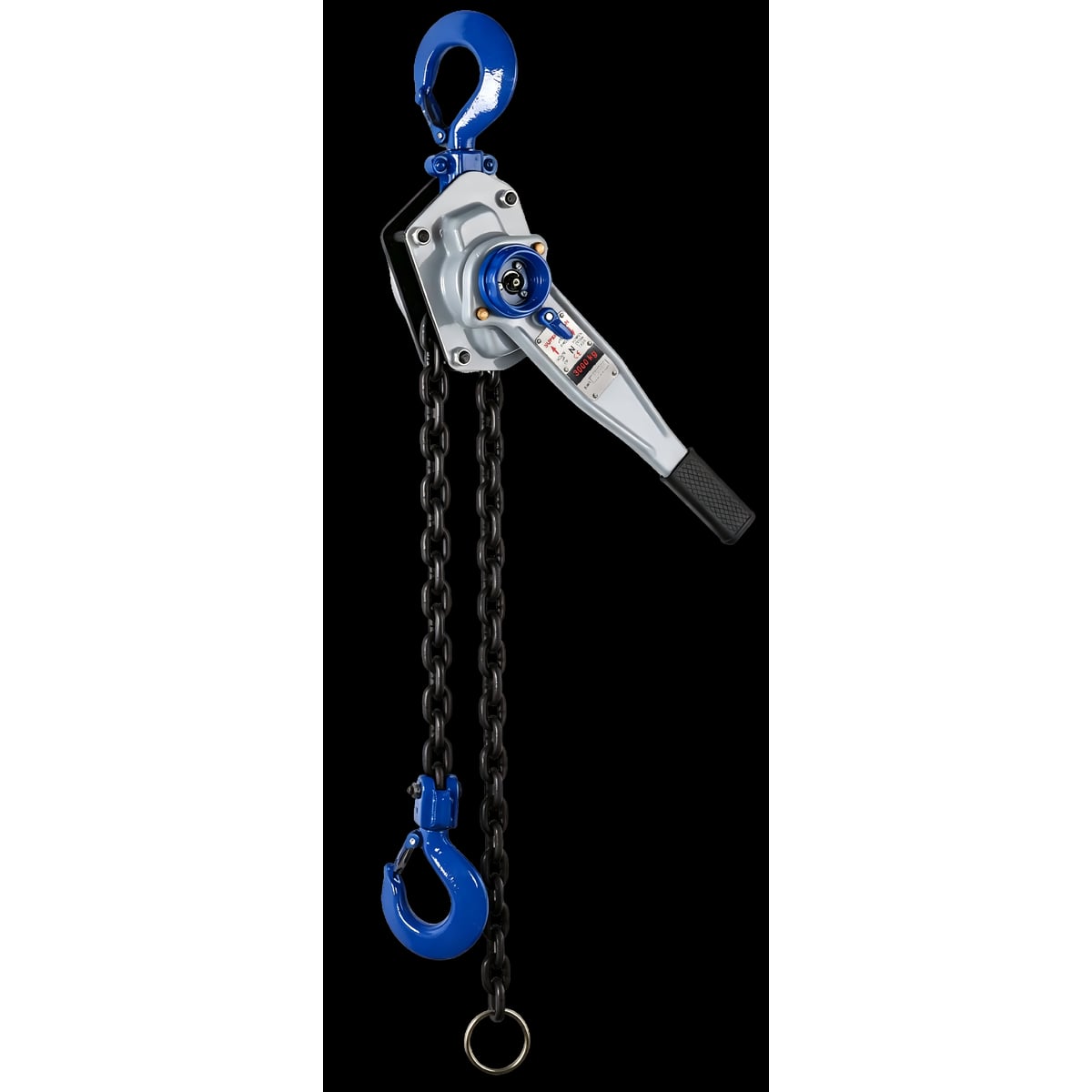

The Super Titan VA Manual Lever Hoist is a compact, light yet durable lever hoist built to EN13157. A double-pawl brake system is designed for safety and reliability, with heat-treated steel plates, gears and shafts for enhanced strength, forged upper and lower hooks with forged steel safety latches, and high-tensile alloy steel chain.
A free-wheeling mechanism allows quick chain adjustment, and the Weston-style automatic load brake uses double-pawl load reduction. The 360-degree rotating handle eases use in confined spaces, and the bottom hook position can be freely adjusted (unloaded) via the shift block’s N position. Safety factor is 4:1, and every unit is fatigue-tested at 1.5 times WLL to 2000 cycles.
Available sizes

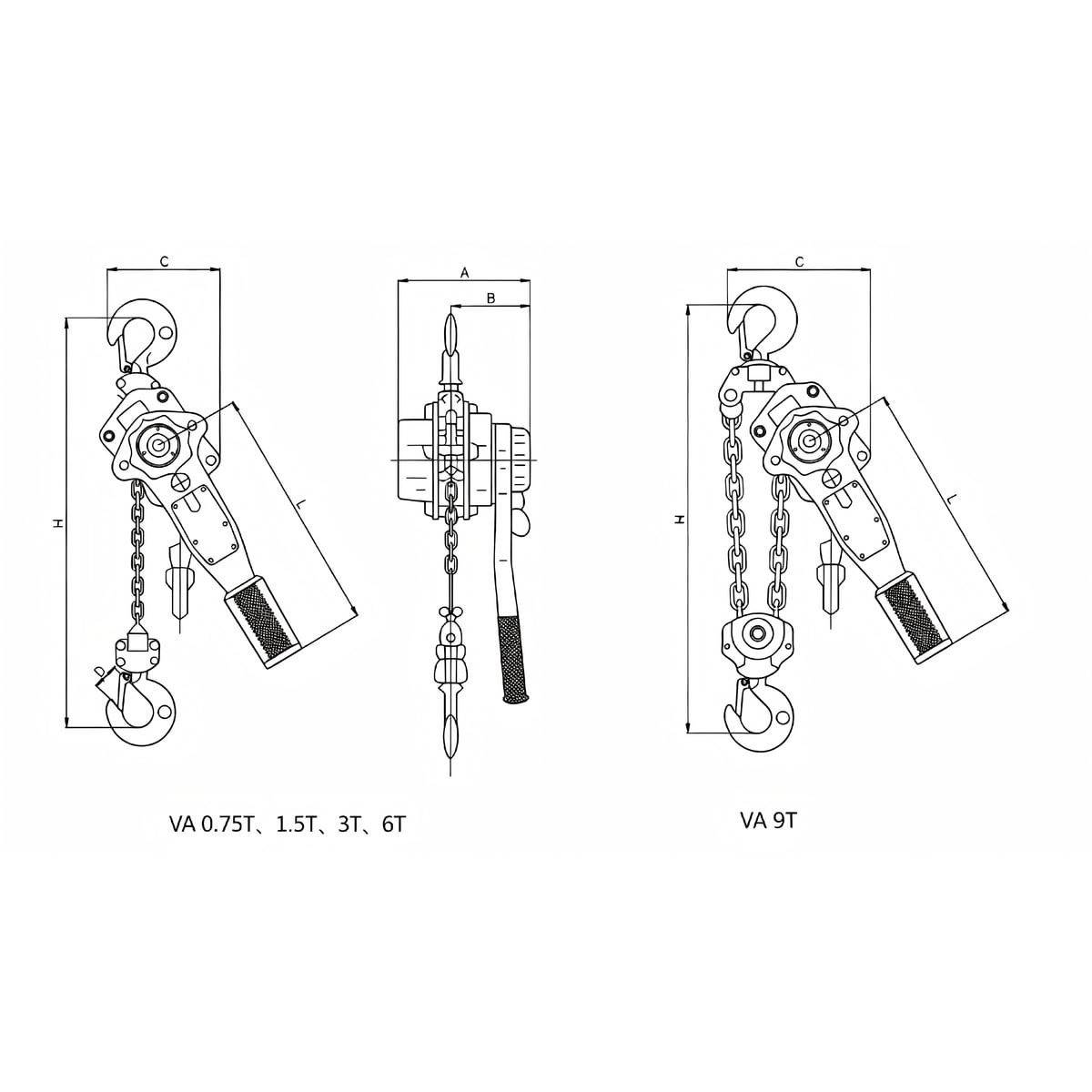

| Capacity | Test Load | Effort Required to Lift Max Load | Load Chain Number of Falls | Load Chain Specification | Net Weight | Gross Weight | Packing Size | Add 1m Weight | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | L (mm) | K (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.75 t | 11 t | 140 N | 1 | 6 mm | 7.5 kg | 8 kg | 35.5*14*16.5 cm | 0.8 kg | 145 | 86 | 122 | 37 | 320 | 285 | 30 |
| 1.5 t | 22.5 t | 220 N | 1 | 8 mm | 11.5 kg | 12 kg | 46.5*15.5*19 cm | 1.4 kg | 175 | 100 | 130 | 45 | 380 | 370 | 36 |
| 3 t | 37.5 t | 320 N | 1 | 10 mm | 21 kg | 22 kg | 51*19*21.5 cm | 2.2 kg | 203 | 118 | 150 | 50 | 480 | 410 | 40 |
| 6 t | 75 t | 340 N | 2 | 10 mm | 31.5 kg | 33 kg | 53*22*21.5 cm | 4.4 kg | 203 | 118 | 205 | 64 | 620 | 410 | 50 |
| 9 t | 112.5 t | 360 N | 3 | 10 mm | 47 kg | 49 kg | 82*32*21.5 cm | 6.6 kg | 203 | 118 | 316 | 85 | 700 | 410 | 58 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
