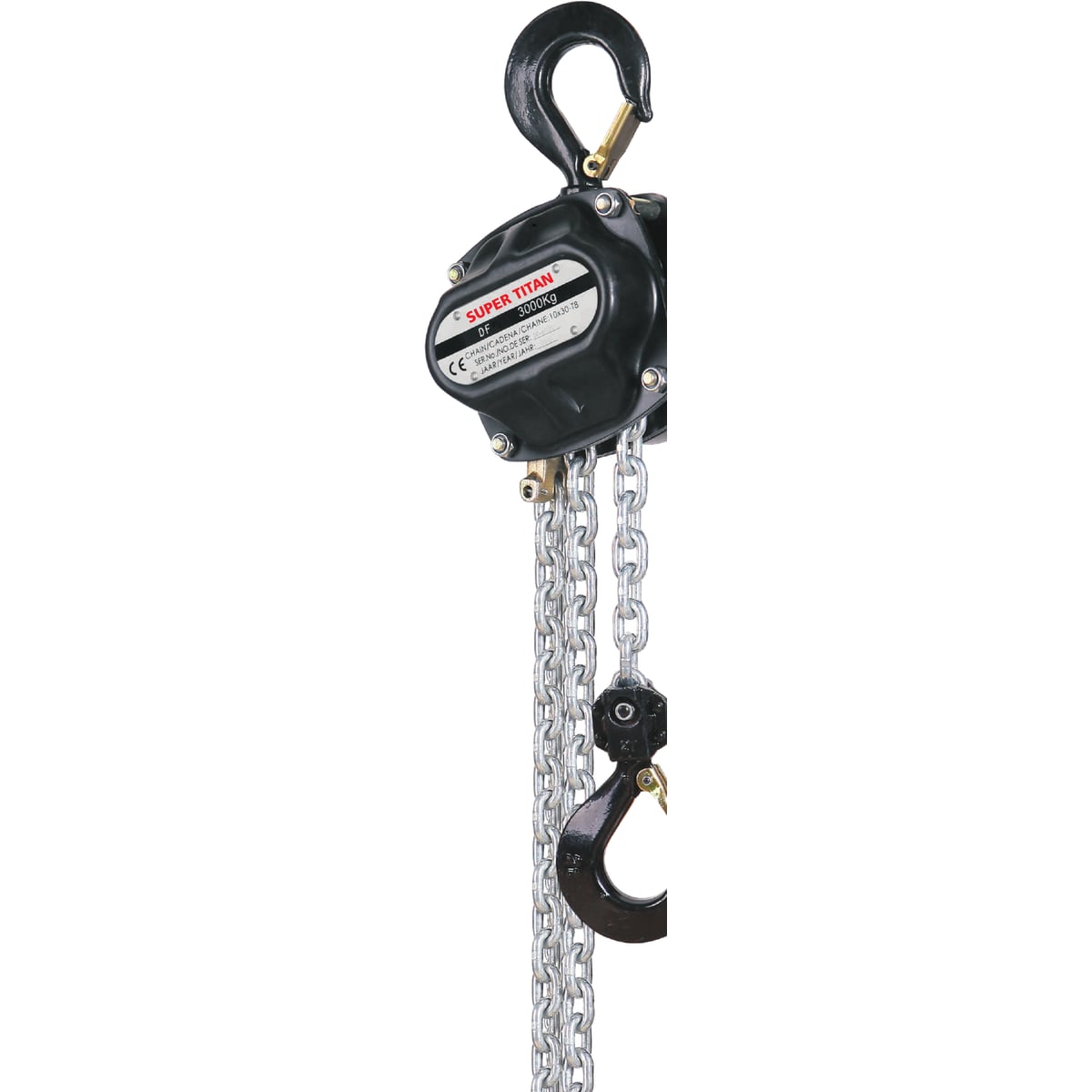

The Super Titan DF Manual Chain Hoist is a compact-sized chain block built to EN13157, covering the full capacity range from 0.25 to 50 tonnes. Suspension and load hooks are alloy steel (35CrMo), heat-treated and fitted with heavy-duty safety latches that rotate freely 360 degrees. Gears use 20CrMnTi material for toughness and strength, with machined chain sprockets and gears for smoother, more efficient operation.
Fitted with high-strength Grade 80 alloy steel load chain, galvanized for corrosion resistance and compliant with EN 818-7 (safety factor 4, chain marked with T8 marks). The hoist has an overload protection system, heavy-duty guide rollers to avoid chain slippage, and a rugged construction with a steel gear case and hand-wheel cover. Every hoist is tested at 1.5 times WLL before dispatch.

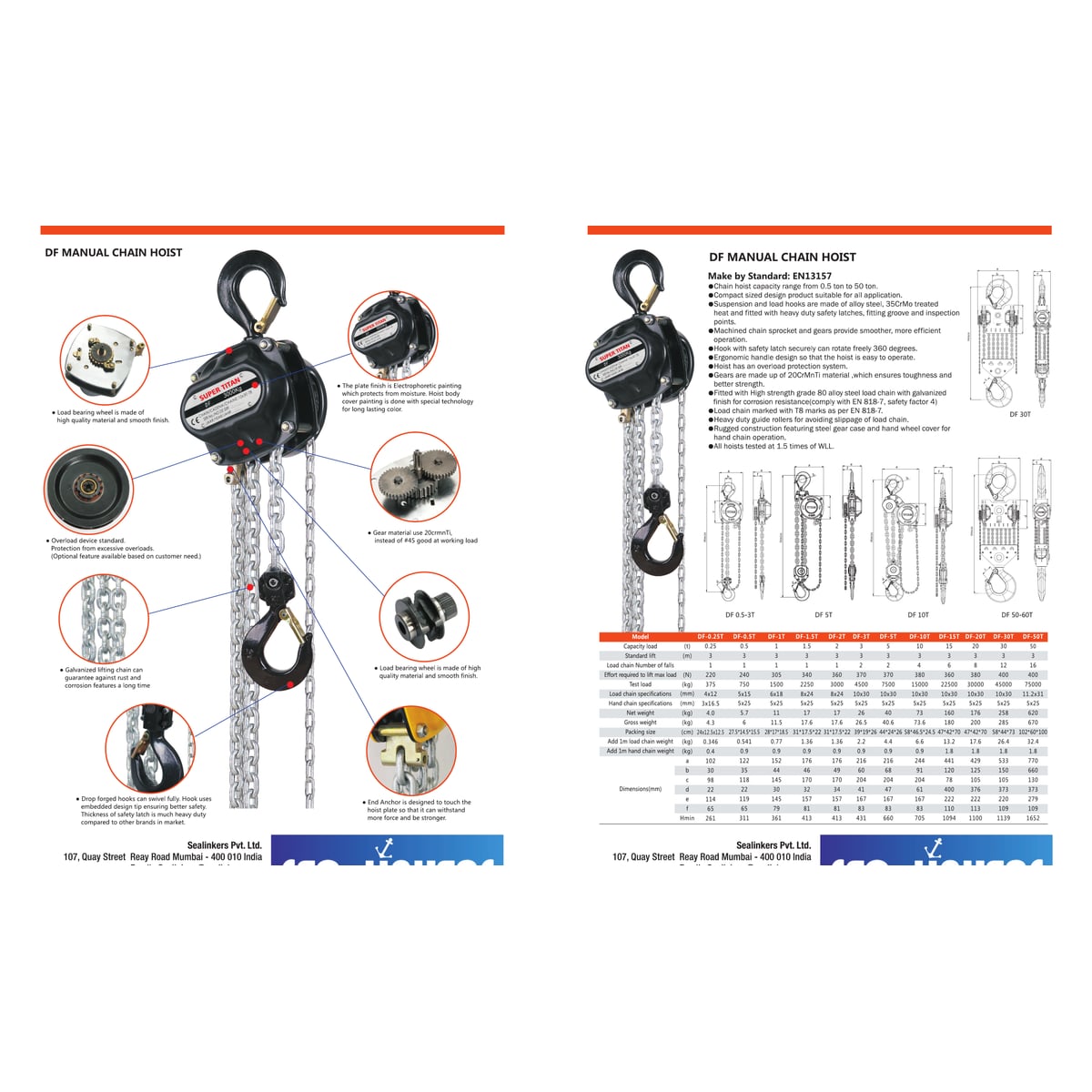

Available sizes
| Capacity | Load Chain Number of Falls | Effort Required to Lift Max Load | Test Load | Load Chain Specification | Hand Chain Specification | Net Weight | Gross Weight | Packing Size | Add 1m Load Chain Weight | Add 1m Hand Chain Weight | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | f (mm) | Hmin (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 t | 1 | 220 N | 375 kg | 4×12 mm | 3×16.5 mm | 4.0 kg | 4.3 kg | 24×12.5×12.5 cm | 0.346 kg | 0.4 kg | 102 | 30 | 98 | 22 | 114 | 65 | 261 |
| 0.5 t | 1 | 240 N | 750 kg | 5×15 mm | 5×25 mm | 5.7 kg | 6 kg | 27.5*14.5*15.5 cm | 0.541 kg | 0.9 kg | 122 | 35 | 118 | 22 | 119 | 65 | 311 |
| 1 t | 1 | 305 N | 1500 kg | 6×18 mm | 5×25 mm | 11 kg | 11.5 kg | 28*17*18.5 cm | 0.77 kg | 0.9 kg | 152 | 44 | 145 | 30 | 145 | 79 | 361 |
| 1.5 t | 1 | 340 N | 2250 kg | 8×24 mm | 5×25 mm | 17.6 kg | 17.6 kg | 31*17.5*22 cm | 1.36 kg | 0.9 kg | 176 | 46 | 170 | 32 | 157 | 81 | 413 |
| 2 t | 1 | 360 N | 3000 kg | 8×24 mm | 5×25 mm | 17 kg | 17.6 kg | 31*17.5*22 cm | 1.36 kg | 0.9 kg | 176 | 49 | 170 | 34 | 157 | 81 | 413 |
| 3 t | 2 | 370 N | 4500 kg | 10×30 mm | 5×25 mm | 26 kg | 26.5 kg | 39*19*26 cm | 2.2 kg | 0.9 kg | 216 | 60 | 204 | 41 | 167 | 83 | 431 |
| 5 t | 2 | 370 N | 7500 kg | 10×30 mm | 5×25 mm | 40 kg | 40.6 kg | 44*24*26 cm | 4.4 kg | 0.9 kg | 216 | 68 | 204 | 47 | 167 | 83 | 660 |
| 10 t | 4 | 380 N | 15000 kg | 10×30 mm | 5×25 mm | 73 kg | 73.6 kg | 58*46.5*24.5 cm | 6.6 kg | 0.9 kg | 244 | 91 | 78 | 61 | 167 | 83 | 705 |
| 15 t | 6 | 360 N | 22500 kg | 10×30 mm | 5×25 mm | 160 kg | 180 kg | 47*42*70 cm | 13.2 kg | 1.8 kg | 441 | 120 | 105 | 400 | 222 | 110 | 1094 |
| 20 t | 8 | 380 N | 30000 kg | 10×30 mm | 5×25 mm | 176 kg | 200 kg | 47*42*70 cm | 17.6 kg | 1.8 kg | 429 | 125 | 105 | 376 | 222 | 113 | 1100 |
| 30 t | 12 | 400 N | 45000 kg | 10×30 mm | 5×25 mm | 258 kg | 285 kg | 58*44*73 cm | 26.4 kg | 1.8 kg | 533 | 150 | 130 | 373 | 220 | 109 | 1139 |
| 50 t | 16 | 400 N | 75000 kg | 11.2×31 mm | 5×25 mm | 620 kg | 670 kg | 102*60*100 cm | 32.4 kg | 1.8 kg | 770 | 660 | 130 | 373 | 279 | 109 | 1652 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
