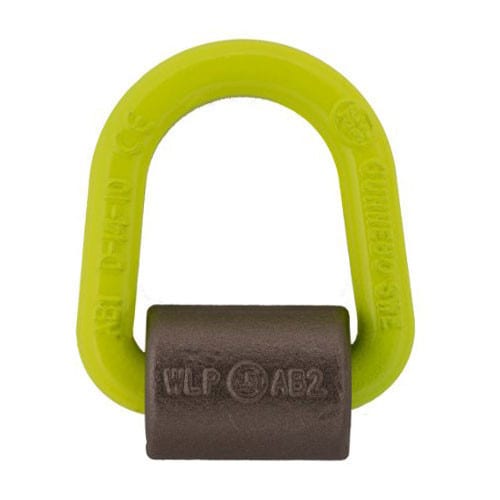

Gunnebo Johnson WLP Weldable Lifting Point
The Gunnebo Johnson WLP is a Grade 100 weld-on lifting point with a pivoting D-ring. Designed for permanent attachment to structures, frames, and lifting fixtures, it delivers safe, dependable performance for heavy-duty applications. A built-in stay-up spring keeps the D-ring upright, making rigging faster and more efficient.
Key Features: Grade 100 construction with a 4:1 design factor.
Weld-on block style base for a compact, low-profile installation.
Pivoting D-ring with stay-up spring for easy connection.
High-visibility yellow finish for quick identification.
Working Load Limits from 5,510 lbs up to 35,300 lbs. Working Load Limits & Specifications: Z7009001 – WLP 2.5T: 5,510 lbs WLL, approx. 1.10 lbs weight
Z7009011 – WLP 4T: 8,800 lbs WLL, approx. 1.76 lbs weight
Z7009021 – WLP 7T: 15,428 lbs WLL, approx. 3.97 lbs weight
Z7009031 – WLP 10T: 22,040 lbs WLL, approx. 7.50 lbs weight
Z7009041 – WLP 16T: 35,300 lbs WLL, approx. 14.77 lbs weight Important Notes: All welding must be performed by qualified personnel using an approved procedure.
Install with proper orientation to align with load direction—avoid side loading.
Inspect before each use for cracks, wear, or deformation; remove from service if damaged.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
