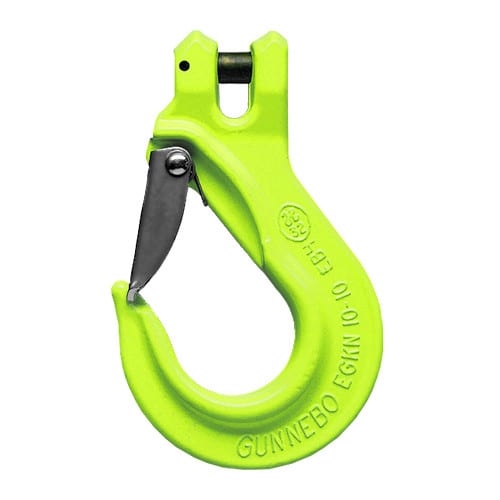

Gunnebo 3/4″ EGKN-20-10 Grade 100 Clevis Sling Hook – 35300 lbs WLL – #Z101127

Proof-load tested on request, up to 1,200 T
Test certificate with every item
IRS · ABS · LRS · BV certification
Price, stock and lead time within one working day

Gunnebo EGKN Sling Hooks with Latch – Grade 100
The Gunnebo EGKN Sling Hook is perhaps the most well-known and widely used hook style for chain slings. Built for reliability and safety, the EGKN features a forged alloy steel body and a spring-loaded safety latch that keeps the load securely…

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Ask on WhatsApp

Gunnebo EGKN Sling Hooks with Latch – Grade 100

The Gunnebo EGKN Sling Hook is perhaps the most well-known and widely used hook style for chain slings. Built for reliability and safety, the EGKN features a forged alloy steel body and a spring-loaded safety latch that keeps the load securely engaged. Designed for use with Grade 100 and Grade 80 chain, it’s a trusted standard in lifting, rigging, and material handling applications around the world.

Key Features: Compatible with Grade 100 or Grade 80 chain

Forged alloy steel construction for exceptional durability

Heavy-duty latch for positive load retention

4:1 Design Factor for dependable lifting performance

Complies with EN 1677:2008 (+25% WLL), ASTM A952/A952M, and AS 3776:2015

One of the most recognized and widely used sling hook designs in the industry Important: Always ensure the hook and chain are properly matched. Working Load Limit (WLL) values are based on the weakest component in the assembly.

Specifications: Stock No.

Model

WLL (lbs)

Throat Opening (in)

Weight (lbs) B14460

EGKN-6-10

3,306

0.98

0.88 Z100843

EGKN-7-10

4,500

1.06

1.10 B14461

EGKN-8-10

5,700

1.10

1.10 B14462

EGKN-10-10

8,800

1.38

2.43 B14463

EGKN-13-10

15,000

1.65

4.85 B14464

EGKN-16-10

22,600

2.09

8.82 Z101127

EGKN-20-10

35,300

2.56

16.76 All dimensions are in inches. Working Load Limits (WLL) are based on Grade 100 chain with a 4:1 design factor. Meets EN 1677:2008 (+25% WLL), ASTM A952/A952M, and AS 3776:2015 standards.

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
