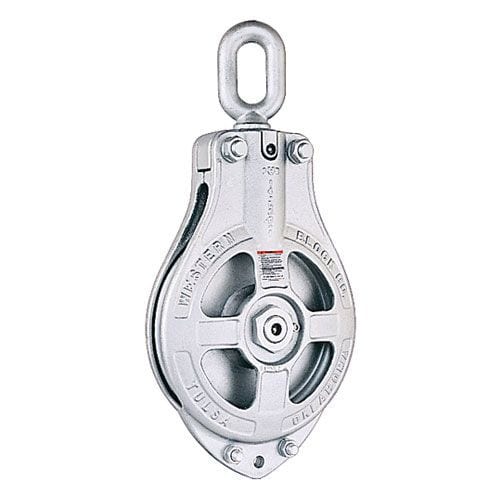

The Crosby Western J-566 12" Cargo Hoisting Block – 5 Ton WLL is part of the Crosby block range. Sealinkers supplies it from Mumbai with documentation on request.
Block is fitted with tapered roller bearings which take both load and side thrusts and hold sheave central so it cannot chafe or wear on the sides
Tapered roller bearing with neoprene seals and stainless steel center pin provide long life and trouble-free service
Blocks 14" and larger have flame-hardened roll forged sheaves that assure greater wire life; roll forged sheave is fitted closely into mortise of shell so wire cannot jam between sheave and shell
Stainless steel center pin has recessed nuts with lock washers
Swivel fitting has permanently sealed thrust bearing
Pressure lubrication fittings are standard on both center pin and swivel
Individually Proof Tested at 4 times Working Load Limit or 2 times Resultant Load.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
