The Crosby Straightpoint SW-HHP Wireless Handheld Plus is part of the Crosby lifting hardware range. Sealinkers supplies it from Mumbai with documentation on request.

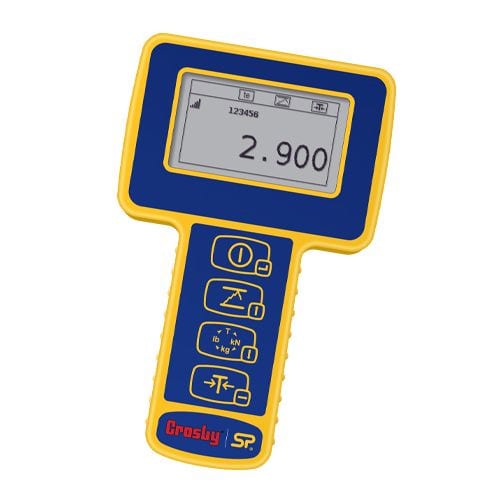

Crosby Straightpoint SW-HHP Handheld Plus – Wireless Load Cell Display
The SW-HHP Handheld Plus is a rugged and versatile wireless display unit designed to work with all Crosby Straightpoint wireless load cells. Whether you're performing heavy lifts, monitoring rigging loads, or logging weight data from a safe distance, this handheld offers powerful features in a compact and durable format.
It features a multi-line dot matrix display with backlight, and it supports real-time monitoring of up to four load cells simultaneously. With a wireless range of up to 1,000 meters (3280 feet), it gives you the freedom to move safely and efficiently around your job site. The unit includes a user-resettable overload counter, peak hold, multiple display units (tons, lbs, kg, kN), and a programmable audible overload alarm.
Key Features Wireless Range: Up to 1,000 meters (3280 ft)
Multi-Load Monitoring: Displays up to four load cells at once
Overload Counter: Tracks overload events for safety and QC compliance
Audible Overload Alarm: 90db programmable alert
Peak Hold and Pre-Set Tare: Capture max values and offset known weights
Multi-Unit Display: Switch between metric tons, lbs, kg, and kN
Rugged Construction: IP65 / NEMA4X environmental protection rating
Power: Operates on 2 x AA batteries, up to 40 hours of continuous use Specifications Display: 240 x 128 pixel multi-line dot matrix with backlight
Wireless Frequency: 2.4GHz
Battery Life: Approx. 40 hours (2 x AA batteries)
Operating Temperature: -10°C to +50°C (14°F to 122°F)
Environmental Rating: IP65 / NEMA4X Note: The SW-HHP is included with Radiolink Plus units, but is sold separately when purchasing Wireless Loadshackles.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
