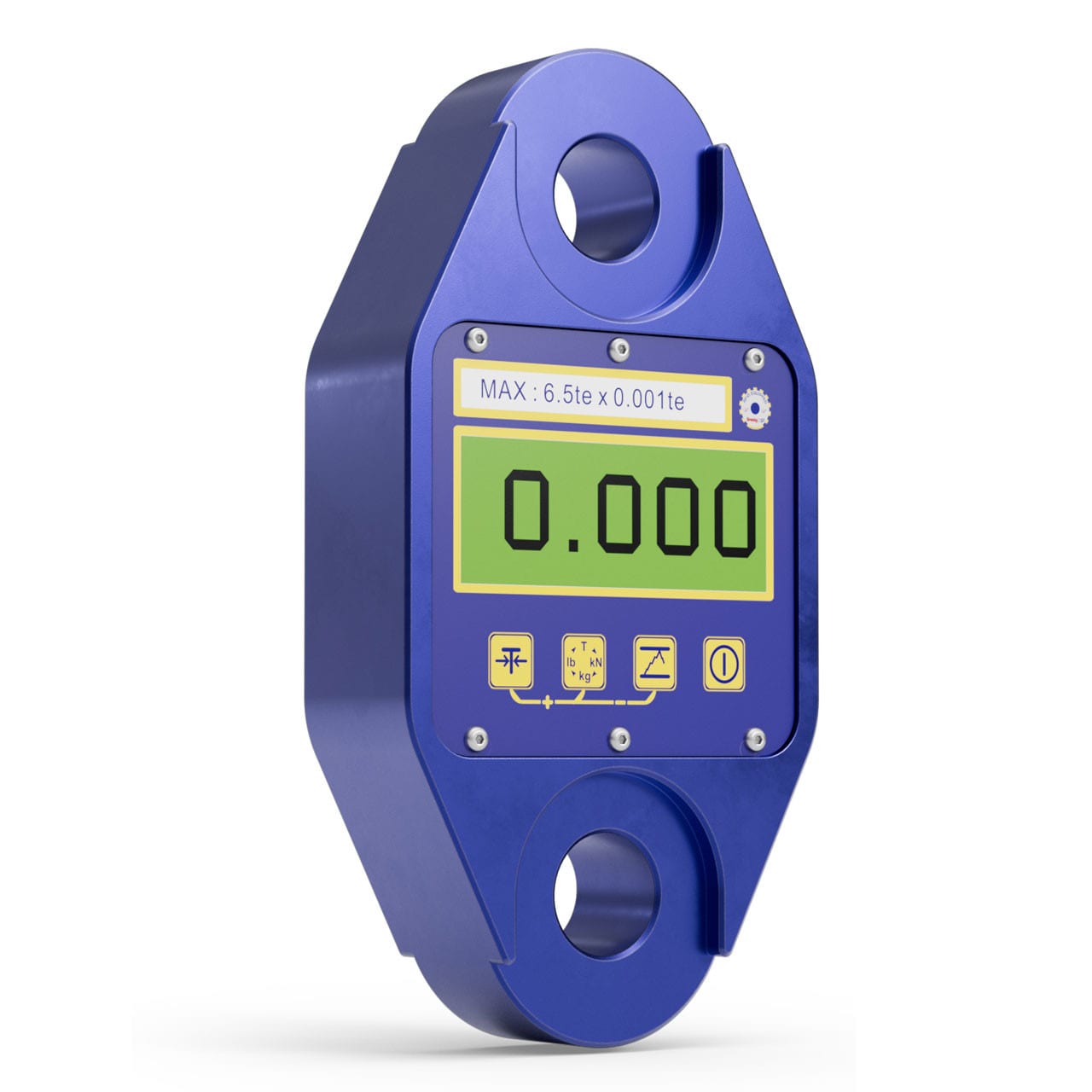

The Crosby Straightpoint Self-Indicating Dynamometer (SID) – 6-1/2 Ton is part of the Crosby lifting hardware range. Sealinkers supplies it from Mumbai with documentation on request.
Features
- Straightpoint SID – Self Indicating Dynamometer
The Straightpoint SID is a 14,300 lb (6.5 metric ton) dynamometer designed for applications where close-up, direct load monitoring is required. Unlike the Bluetooth-based Blue. - Link, the SID features a large built-in 1" (25 mm) LCD display that provides clear, real-time readings right at the device. Its advanced microprocessor electronics deliver fast response, high stability, and excellent resistance to electrical noise, making it ideal for demanding industrial environments.
The SID is engineered from aerospace-grade aluminum with a hard-anodized finish for durability and features a compact 6.14" (156 mm) eye-to-eye length to minimize headroom loss. It maintains a 6:1 safety factor and is on average 30% lighter than many competing link-style dynamometers. Shackles are sold separately; the recommended fit is the Crosby 7/8" G-2130 Bolt Type Anchor Shackle (6-1/2 ton WLL, #1019533).
Powered by a single 9V PP3 battery, the SID provides up to 80 hours of continuous operation. Features include selectable units (lbs, kg, kN, tonnes), 100 Hz peak hold, preset tare, overload counter, RS-485 serial output, and a 90 dB audible alarm for set-point overloads. Its IP65 / NEMA 4X rating ensures reliable performance even in challenging conditions.
Key Features 14,300 lb (6.5 t) capacity with 6:1 safety factor
Large 1" / 25 mm LCD display with clear real-time readout
Accuracy: ±0.2% of full scale
Selectable units: tonnes, lbs, kg, kN
100 Hz high-speed peak hold function
Push-button tare and preset tare
Overload counter with audible 90 dB alarm
RS-485 serial output for system integration
Battery life: 80 hrs continuous use (9V PP3 battery)
IP65 / NEMA 4X environmental protection
Shackles sold separately – recommended shackle: Crosby 7/8" G-2130 Bolt Type Anchor Shackle (6-1/2 ton WLL, #1019533)
Complies with ASME B30.26
2-year warranty Typical Applications Aircraft engine installation and maintenance
Rigging with gantry cranes
Steel beam fabrication
General load weighing and testing
Transportation tie-downs and towing
Utility and linesman tensioning.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
