The Crosby Straightpoint RLP250T Radiolink Plus Wireless Dynamometer – 250 Ton is part of the Crosby link range. Sealinkers supplies it from Mumbai with documentation on request.

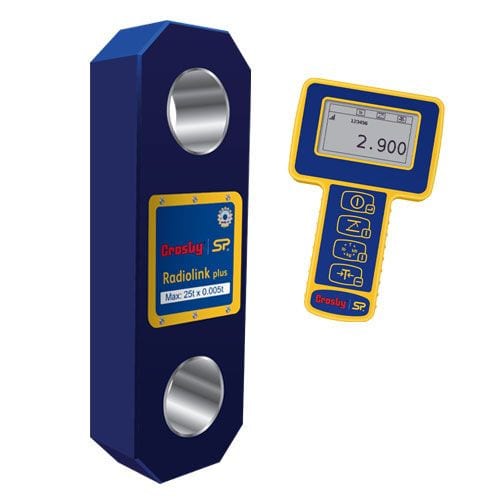

Crosby Straightpoint Radiolink Plus – RF Model with Included Handheld Display
The Crosby Straightpoint Radiolink Plus (RLP) is a DNV-GL type-approved wireless tension load cell designed for weighing and dynamic load monitoring in capacities from 1t to 300t (2,200 lb to 660,000 lb). Constructed from high-quality aerospace-grade aluminum with IP67 / NEMA6 environmental protection, the RLP delivers exceptional strength-to-weight ratio and performance in the harshest environments.
There are three versions of the Radiolink Plus available, with most customers choosing the RF model for its long range and portability:
This Model (RF 2.4 GHz): Long-range wireless (up to 1000 m / 3280 ft) to the included SW-HHP handheld display or Straightpoint’s Insight computer software.
The handheld is included for convenience and portability — no additional purchase required.
Can display readings from up to 4 load cells simultaneously. Special Order Models: Bluetooth model – Connects directly to any iOS or Android smartphone using SP’s free HHP App. Range up to 100 m (328 ft).
ATEX/IECEx model – For hazardous areas (zones 0, 1 & 2) with wireless range up to 500 m (1640 ft) to the SW-HHP-ATEX handheld. Key Features (RF Model Only): Wireless Range: Up to 1000 m (3280 ft) via 2.4 GHz RF
Included Handheld Display: Multi-line dot-matrix with backlight
Flexible Viewing Options: Works with Insight PC software for advanced logging and reporting
High Accuracy: ±0.1% full scale
Peak Hold & Audible Alarm: Capture peak loads and set overload alerts
Rugged Build: Aerospace-grade aluminum, IP67 / NEMA6 sealing
Battery Life: Load cell up to 1,200 hours (4 x AA alkaline); handheld up to 40 hours (2 x AA)
Compliance: ASME B30.26, DNV-GL Type Approval Specifications (RF Model Only): Capacity Range: 1t to 300t (2,200 lb to 660,000 lb)
Material: Aerospace-grade aluminum body with hardened bushings for industry-standard shackles
Wireless: RF 2.4 GHz, 1000 m range
Environmental Protection: IP67 / NEMA6
Operating Temperature: –10°C to +50°C (14°F to 122°F)
Battery: Load cell – 4 x AA alkaline; Handheld – 2 x AA alkaline
Accuracy: ±0.1% full scale.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
