The Crosby Straightpoint COLT5T Bluetooth Line Tensiometer – 5 Ton is part of the Crosby lifting hardware range. Sealinkers supplies it from Mumbai with documentation on request.

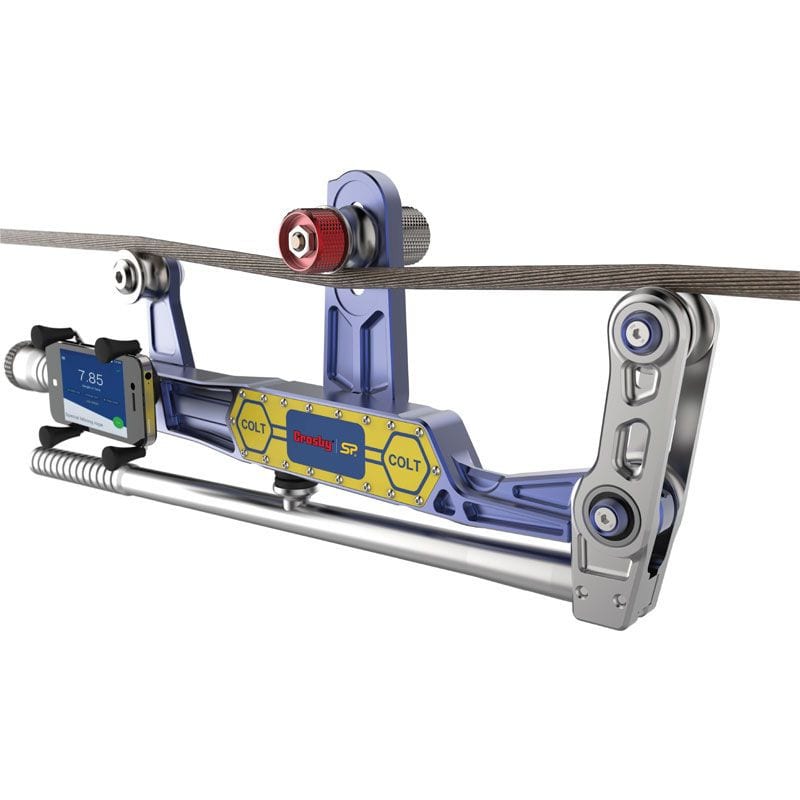

Crosby Straightpoint COLT Clamp On Line Tension Meter
The Crosby Straightpoint COLT is a lightweight, portable wire rope tension meter designed for fast and accurate tension measurement. Engineered from aerospace-grade aluminum, it provides reliable performance for a wide range of applications, handling wire ropes up to 1 inch in diameter and loads up to 11,000 lbs.
Key Features Capacity: 11,000 lbs (5 metric tons)
Resolution: 20 lbs
Compatible with wire rope diameters from 3/16" to 1"
Weight: 7.7 lbs
Dimensions: 23.20" L x 10.00" W x 7.90" H
Constructed from aerospace-grade aluminum for strength and light weight
Wireless Bluetooth 4.2 connectivity with range up to 328 ft
Built-in magnetic smart device holder for onboard display
Unlimited wire rope calibration database via free Android/iOS app
Quick-adjust center sheave for fast rope size changes
High waterproof rating: IP67 / NEMA6 for all-weather use
Battery life: 1,000 hours of Bluetooth transmission (2 x C-cell batteries)
Accuracy: ±3% of full scale (when rope diameter and construction are known)
Operating temperature: -13°F to +158°F Additional Details Main swivel joints with high-quality bearings for smooth operation
Safe and easy clamping with a 5.3:1 lever ratio, even on pre-tensioned wire ropes
No external antenna to break, enhancing durability
Max line reduction: 7/32" with a 3/8" wire rope
Free app updates ensure ongoing access to an expanding rope calibration library Calibration Tool (Sold Separately) Part Number: 2789225 (SP-SA507)
Crosby offers a Calibration Verification Tool (CVT) to ensure the COLT remains accurate in the field Note: Specifications assume the COLT is used on a wire rope with both fixed and flexible ends. Wire rope sold separately.
