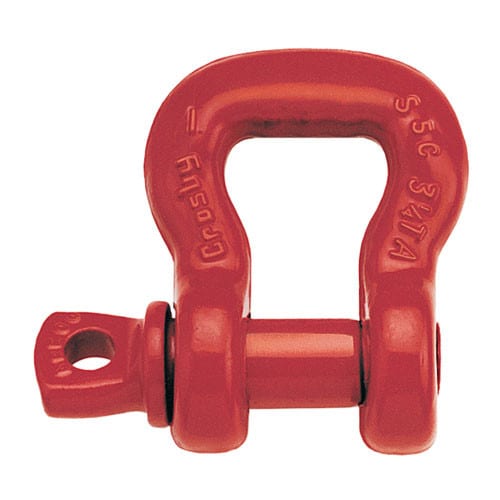

Crosby S-253 Screw Pin Sling Shackle – 12-1/2 Ton WLL – #1020602

The Crosby S-253 Screw Pin Sling Shackle – 12-1/2 Ton WLL is part of the Crosby shackle range (catalogue no. 1020602). Sealinkers supplies it from Mumbai with documentation on request.

All alloy construction
Design factor of 5:1
Each shackle has a Product Identification Code (PIC) for material traceability along with a Working Load Limit and the name Crosby forged into it
Increased radius of bow gives wider sling bearing surface resulting in an increased area for load distribution, allows better load distribution on internal fibers Increasing Synthetic Sling efficiency as compared to standard anchor and chain shackle bows and conventional hooks; this allows 100% of the sling's rated Working Load Limit to be achieved Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements; importantly, these shackles meet other critical performance requirements, including fatigue life, impact properties, and material traceability not addressed by ASME B30.26
Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Round Slings by the Web Sling & Tie Down Association. WSTDA-RS1
Bolt (pin) has a larger diameter that provides better load distribution
Look for the Red Pin®… the mark of genuine Crosby quality.

Specifications

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
