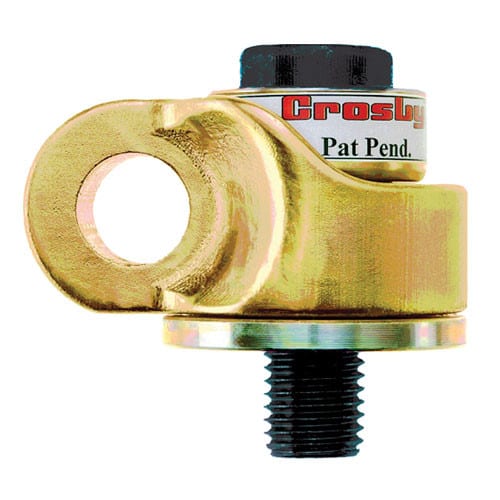

The Crosby M48-5 x 70.60 mm HR-1200M Side Pull Hoist Ring – 13000 kg WLL is part of the Crosby ring range (catalogue no. 1067843). Sealinkers supplies it from Mumbai with documentation on request.
Features
- Body components are alloy steel, Quenched and Tempered.
- Rated at 100% up to 90º angle.
- Individually proof-tested to 2-1/2 times the Working Load Limit with certification and Statistically Magnetic Particle inspected.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Marked with a Product Identification Code (PIC) for traceability, along with Working Load Limit and name Crosby or "CG"Furnished with Yellow Chromate finish for improved corrosion resistance.
- Utilizes standard Crosby shackles for connection to slings, such as G-209 Screw Pin Shackles (sold separately)RFID equipped.
Specifications
| Crosby product no. | 1067843 |
|---|---|
| Catalogue description | HR1200M M48X5,0X160MM SIDE PULL HR |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
