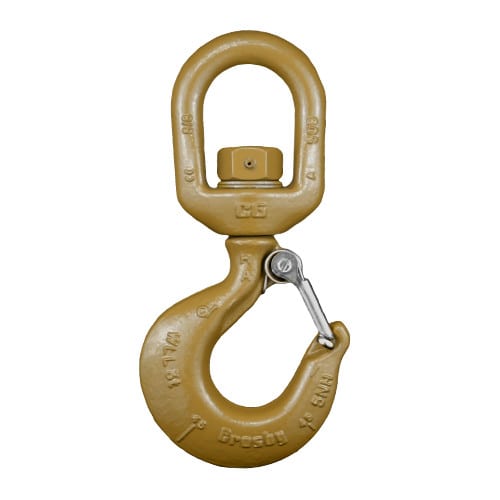

The Crosby L-322AN 7 Ton Alloy Swivel Hook w/ Latch is part of the Crosby hook range (catalogue no. 1048859). Sealinkers supplies it from Mumbai with documentation on request.
Crosby L-322 Swivel Hooks — Alloy Steel, Quic-Check® Equipped
Overview: Crosby L-322 swivel hooks are high-strength, load-rated hooks designed for positioning before the lift. They do not rotate under load and are forged, quenched, and tempered for maximum strength with minimal bulk. All models feature QUIC-CHECK® deformation and angle indicators for safer inspections and proper load alignment. The alloy L-322 series has a distinctive gold finish and is available on in capacities from 1 ton to 30 tons, including the 30T L-320A size (stock no. 1048898). The painted carbon steel L-322CN series, finished in red, is not offered online but is available by special order.
Latch Kits Included: All L-322 alloy swivel hooks now ship with the appropriate latch kit pre-installed. Replacement latch kits are available if needed.
Why These Hooks Stand Out: Each hook is proof tested to 2.5× WLL for 1T–22T alloy models, and 2× WLL for the 30T alloy size. Alloy hooks up to 22T have a 4.5:1 design factor, while the 30T size has a 4:1 design factor. Precision forging, controlled quench and tempering, and a low-profile hook tip designed for Crosby latch kits deliver dependable performance in demanding lifting environments.
Key Features: Load-rated with WLL markings for clear identification
Forged, quenched, and tempered alloy steel for maximum strength
QUIC-CHECK® deformation and angle indicators for enhanced safety
Low-profile tip designed for Crosby latch kits
Ships with latch kit installed — S-4320 for 1T–22T sizes, SS-4055 for 30T size
Fatigue and proof-tested per Crosby specifications
Does not rotate under load — suitable for positioning before lifting Size Range: Alloy swivel hooks from 1 ton to 30 tons WLL.
Standards & Approvals: Meets or exceeds ASME B30.10 requirements; 4.5:1 design factor for 1T–22T alloy, 4:1 design factor for 30T alloy.
Specifications
| Catalogue description | L322AN JA 8T ALLOY SWIVEL HOOK W/LATCH |
|---|---|
| Crosby product no. | 1048859 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
