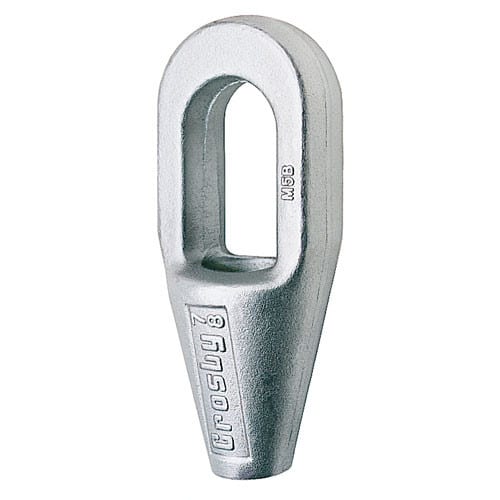

Crosby G-417 Closed Spelter Socket – 1″ Wire Rope – #1040019
- Proof-load tested on request, up to 1,200 T
- Test certificate with every item
- IRS · ABS · LRS · BV certification
- Price, stock and lead time within one working day
Forged steel sockets thru 1-1/2", cast alloy steel 1-5/8" and up. All sockets 1-5/8" and larger are magnetic particle inspected and ultrasonic inspected. Can be furnished proof-tested with certificates (additional charges apply, inquire at time of order). Spelter socket terminations have an…
Request a quote
Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.
The Crosby G-417 Closed Spelter Socket – 1" Wire Rope is part of the Crosby wire rope socket range (catalogue no. 1040019). Sealinkers supplies it from Mumbai with documentation on request.
Features
- Forged steel sockets thru 1-1/2", cast alloy steel 1-5/8" and up.
- All sockets 1-5/8" and larger are magnetic particle inspected and ultrasonic inspected.
- Can be furnished proof-tested with certificates (additional charges apply, inquire at time of order).
- Spelter socket terminations have an efficiency rating of 100% based on the catalog strength of wire rope–ratings are based on recommended use with 6×7, 6×19 or 6×37 IPS, XIP (EIP), XXIP (EEIP), RRL, FC or IWRC wire rope.
- Cable constructed with minimal number of strands (e.g., 1×7 Strand) requires special consideration that socket basket length be five (5) times the strand diameter or fifty (50) times the wire diameter, whichever is greater.
Specifications
| Catalogue description | G417 24-26MM 1" CLOSED SPELTER SOCKET |
|---|---|
| Crosby product no. | 1040019 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
