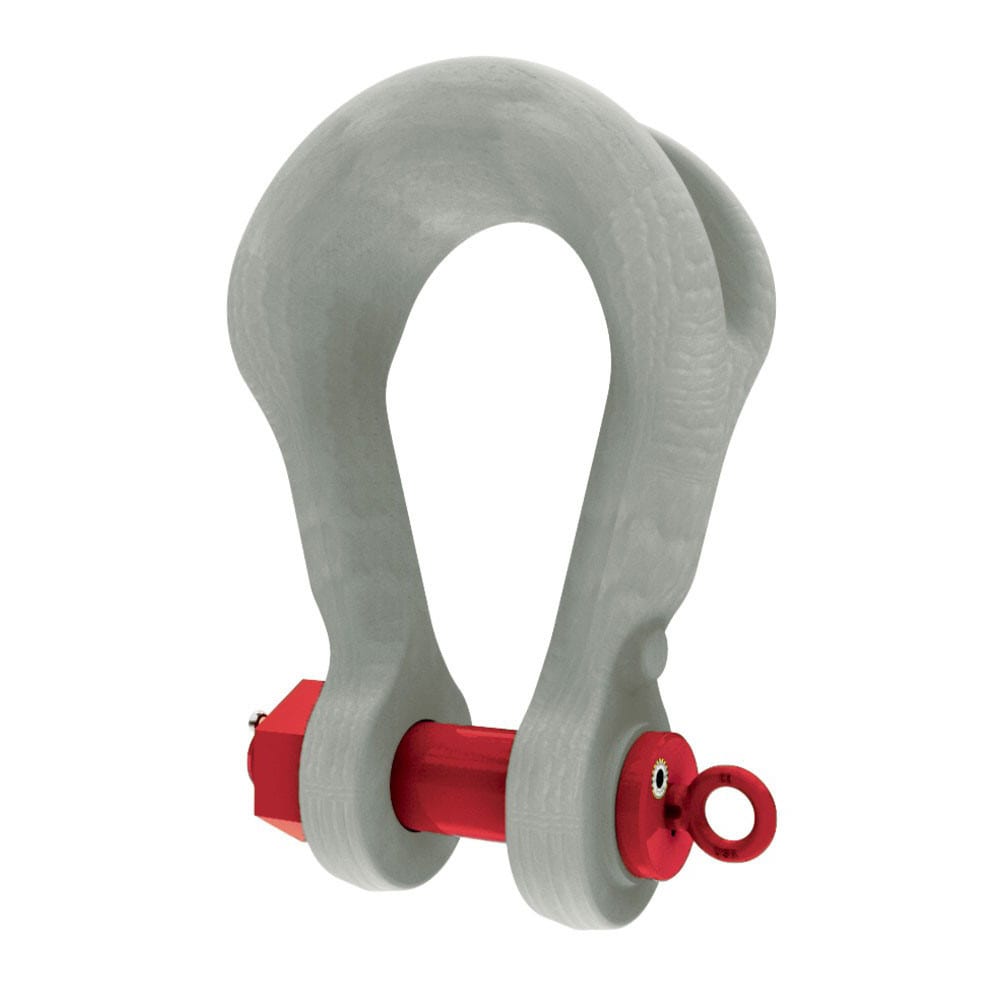

The Crosby G-2160 Wide Body Sling Shackle – 12-1/2 Ton WLL is part of the Crosby shackle range (catalogue no. 1021265). Sealinkers supplies it from Mumbai with documentation on request.
Redesigned Crosby G-2160 Wide Body Shackles – Maximum Sling Efficiency, Safety & Load Monitoring
The redesigned Crosby G-2160 Wide Body Shackles are engineered for extreme lifting challenges, offering a full range of sizes from 7 to 2000 metric tons. With the widest bow on the market, these shackles improve sling efficiency and allow for smaller sling sizes. Enhanced with three ergonomic lift points, bow-to-bow compatibility across all sizes, and optional Easy-Loc™ bolt securement</strong (75t–600t), the G-2160 series improves rigging safety and setup speed. All models are factory-ready for Crosby Straightpoint load monitoring integration and undergo rigorous, comprehensive testing.
Key Features Full Capacity Range: Available from 7 to 2000 metric tons to meet diverse heavy lift requirements.
Widest Bow Design: load surface area for improved sling efficiency and smaller sling sizing.
Bow-to-Bow Compatibility: Compatible across all sizes—unique to Crosby’s G-2160 lineup.
Enhanced Handling: Three lift points—center rib, bow, and both sides of pin—maximize control and ergonomics.
Recessed Center Rib: Reduces snags and simplifies balanced assembly with a removable lifting point.
Anti-Rotation Bolt Head: Prevents unwanted movement during installation for safer, faster rigging.
Optional Easy-Loc™ System: Available for 75t–600t models, including redesigned 400t, 500t, and 600t versions; reduces install/removal time by up to 90%.
Straightpoint-Ready: Factory-shipped ready to accept Crosby SP load pins for real-time load monitoring.
Permanent Raised Markings: Forged-in for clear, lasting traceability and easy inspection.
Comprehensive Testing: Each shackle undergoes 100% production testing: ultrasonic, magnetic particle, chemical, mechanical, and visual inspection.
DNV Type Approved: Certified for safety-critical lifting in offshore, energy, and industrial applications. Proof Load Ratings & Design Factor Design Factor: 5:1
Proof Load (7t–300t): Tested to 2x Working Load Limit
Proof Load Exception: 125t size is proof tested to 1.6x Working Load Limit
Proof Load (400t–2000t): Maximum customer proof load is 1.5x WLL (2x WLL available by special request at time of order) Additional Specifications Easy-Loc™ Compatibility: Offered for sizes 75t to 600t
Load Monitoring Ready: Compatible with Crosby Straightpoint wireless load pins
Finish: Galvanized or painted, varies by size and configuration Note: For applications requiring specific proof load certification, Easy-Loc™ installation, or integrated load monitoring, please indicate requirements when placing your order.
Specifications
| Crosby product no. | 1021265 |
|---|---|
| Catalogue description | G2160 12.5T WIDE BODY ALLOY SHACKLE |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
