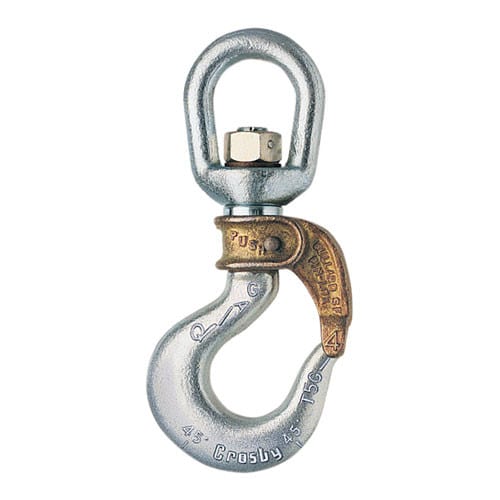

The Crosby BL-C ROLLOX 5 Ton Closed Swivel Bail Golden Gate Hook is part of the Crosby hook range. Sealinkers supplies it from Mumbai with documentation on request.
Crosby Closed Bail Swivel Golden Gate Bullard Hooks – BL-C Series
The Crosby Closed Bail Swivel Golden Gate Bullard Hooks (BL-C Series) are precision-engineered lifting hooks designed for use where a hoisting line or shackle can be inserted directly into the bail. Each hook features a self-closing Golden Gate® latch mechanism that locks securely under load yet can be easily operated with one hand. Built from brass alloy for long service life and corrosion resistance, these hooks are widely used on hoists, cranes, and material handling systems where durability and reliability are essential.
Key Features: Closed Swivel Bail: Allows hoisting line or shackle insertion; ideal for positioning before lifting.
4:1 Design Factor: Engineered for safety and long-term performance under rated load.
QUIC-CHECK® Indicators: Include deformation and angle markings for visual inspection.
Self-Closing Golden Gate®: Locks automatically for operator safety; heavy-duty brass alloy construction.
Corrosion-Resistant: Suitable for demanding lifting environments. Important: Crosby Golden Gate Bullard Hooks are available with multiple gate types depending on hook size. See below for details.
Gate Type Descriptions: LIF-LOK® (Size 1): Spring-loaded locking gate that engages automatically when closed.
PIN-LOK® (Sizes 2–4): Features a horizontal stainless-steel pin engaging a notch in the shank; lever release for controlled unlocking.
ROLLOX® (Sizes 5–9): Dual-arm gate with trigger release; heavy-duty and fast-acting for frequent use.
TIP-LOK® (Sizes 10–17): Two-arm locking gate; secured by a spring-loaded pin engaging a milled slot in the shank. Specifications: Hook Size
Part No.
Gate Type
WLL (tons)
Weight Each (lb)
Throat Opening (in.) 1
1050210
LIF-LOK®
0.45
0.8
0.69 2
1050221
PIN-LOK®
0.90
1.3
0.97 3
1050232
PIN-LOK®
1.3
1.9
1.06 4
1050243
PIN-LOK®
1.5
2.2
1.13 5
1050254
ROLLOX®
2.1
3.8
1.25 6
1050265
ROLLOX®
3.6
4.6
1.39 7
1050276
ROLLOX®
3.8
6.9
1.50 8
1050287
ROLLOX®
5.0
9.6
1.75 9
1050298
ROLLOX®
6.5
13.5
1.88 11
1050309
TIP-LOK®
8.3
20.5
2.25 12
1050320
TIP-LOK®
11.1
27.0
2.50 14
1050342
TIP-LOK®
16.7
55.0
3.38 *WLL = Working Load Limit in short tons. Dimensions and weights per Crosby specifications. 4:1 design factor. Crosby® and Bullard® are registered trademarks of Kito Crosby.
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
