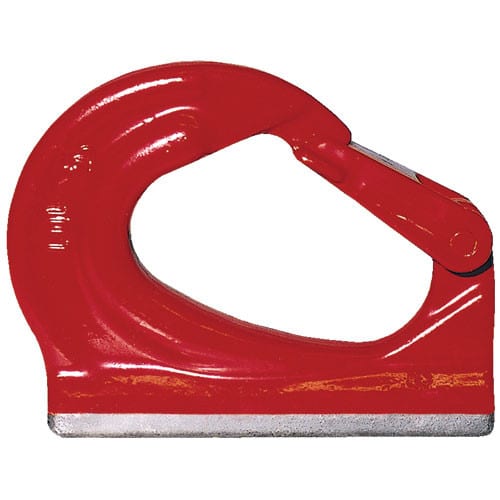

Crosby BH-313 10 Ton Weld-on Bucket Hook – #1029169

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

Description

The Crosby BH-313 10 Ton Weld-on Bucket Hook is part of the Crosby hook range (catalogue no. 1029169). Sealinkers supplies it from Mumbai with documentation on request.

Crosby BH-313 Weld-On Bucket Hooks – Forged Alloy Steel Lifting Hooks
Crosby BH-313 Weld-On Bucket Hooks are engineered to provide a permanent, heavy-duty lifting point on loader buckets, excavators, and other mobile lifting equipment. Forged from high-strength alloy steel and quenched and tempered for durability, these hooks deliver dependable performance in demanding job site environments.
Designed for equipment modification and attachment applications, the BH-313 series features a large weld pad for secure installation and a heavy-duty latch that interlocks with the hook tip for improved load retention. Available in capacities from 1 to 10 metric tons, these hooks are ideal for construction, agriculture, utility work, and material handling operations.
Pro Tip: Proper welding procedures are critical when installing weld-on hooks. Always follow Crosby’s installation guidelines and ensure welding is performed by a qualified welder using appropriate procedures for the base material. Forged alloy steel construction for strength and durability
Quenched and tempered for enhanced toughness
Large weld pad for secure attachment to equipment
Heavy-duty latch interlocks with hook tip
Wide capacity range: 1 to 10 metric tons
5:1 design factor
Replacement latches available BH-313 Weld-On Hook Specifications Part Number
WLL (Metric Tons)
Throat Opening (in.)
Base Length (in.)
Weight (lbs)
Replacement Latch No. 1029105
1
0.91
3.82
1.15
1092104 1029114
2
0.91
3.23
1.85
1092104 1029123
3
1.14
4.61
2.60
1092104 1029132
4
1.34
5.16
4.19
1092105 1029141
5
1.34
6.34
5.62
1092105 1029150
8
1.38
6.54
7.28
1092105 1029169
10
1.93
8.07
11.02
1092106 Crosby BH-313 Weld-On Hooks provide a dependable lifting solution for equipment modifications requiring a permanent attachment point. Built to Crosby’s high manufacturing standards, these hooks are trusted across construction, infrastructure, and industrial applications.
