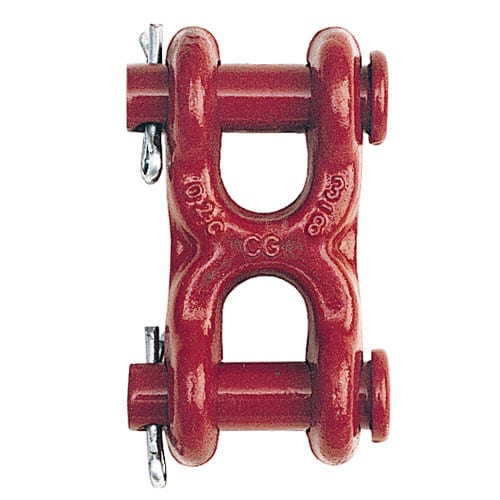

The Crosby 7/16" – 1/2" S-249 Grade 70 Twin Clevis Link – 11300 lbs WLL is part of the Crosby link range (catalogue no. 1012905). Sealinkers supplies it from Mumbai with documentation on request.
Crosby S-249 Twin Clevis Link
The Crosby S-249 Twin Clevis Link is a compact, forged carbon steel connector featuring two equal clevis jaws for inline chain-to-chain connections. It provides a simple and efficient way to join, repair, or extend chain lengths without compromising load alignment.
Key Features Forged and heat-treated carbon steel body with alloy steel pins, quenched and tempered for durability.
Twin clevis design provides two matching jaws for balanced, inline loading.
Engineered for quick chain coupling, repair, or length adjustment in the field.
Compatible with Grade 3, Grade 4, and Grade 7 chain.
4:1 design factor; ultimate strength is four times the Working Load Limit (WLL).
Easy, tool-free pin assembly simplifies setup and removal. Size & Capacity Range Available chain sizes: 1/4" through 1/2"
Working Load Limit (WLL): 4,700 lbs to 11,300 lbs Important: Crosby S-249 Twin Clevis Links are designed for load securement and general rigging—they are not rated for lifting. Do not use for overhead lifting or in Grade 80/100 chain slings.
Ensure both clevis jaws are fully seated and pins are properly secured before use.
Maintain straight, inline loading to prevent bending or torsion. Typical Applications Chain splicing or length adjustment
Load securement assemblies and tie-backs
General rigging and transport use where inline alignment is required.
Specifications
| Catalogue description | S249 11-13MM 7/16-1/2" TWIN CLEVIS LINK |
|---|---|
| Crosby product no. | 1012905 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
