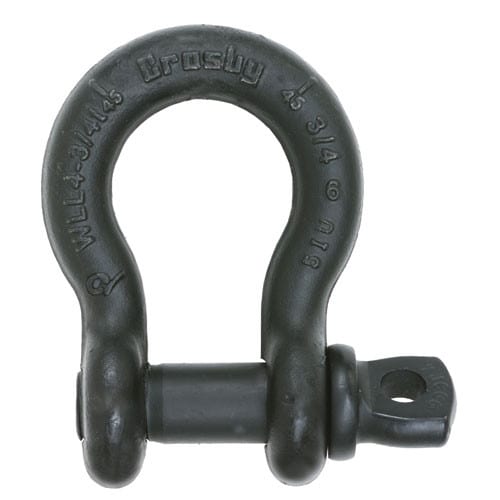

Crosby 5/8″ S-209T Screw Pin Anchor Shackle – 3-1/4 Ton WLL – #1018760

The Crosby 5/8" S-209T Screw Pin Anchor Shackle – 3-1/4 Ton WLL is part of the Crosby shackle range (catalogue no. 1018760). Sealinkers supplies it from Mumbai with documentation on request.

Crosby S-209T Theatrical Shackles – Low-Visibility, High-Strength Rigging
The Crosby S-209T Theatrical Shackles are purpose-built for stage, studio, and entertainment rigging where performance, safety, and discretion are critical. Forged from high-strength steel, these screw pin anchor shackles are quenched and tempered for durability and feature a flat black powder coat finish to reduce light reflection. With sizes from 3/8" to 3/4" and working load limits up to 4-3/4 metric tons, the S-209T series provides reliable rigging performance with a clean, non-intrusive appearance.
Key Features Flat Black Powder Coat: Non-reflective finish ideal for theatrical, studio, and production environments.
High-Strength Forging: Quenched and tempered for enhanced toughness and fatigue resistance.
Screw Pin Anchor Style: Quick to install and remove—perfect for adjustable rigging setups.
Fatigue Rated: Designed for repeated dynamic loading conditions.
Permanent WLL Marking: Clearly forged into each shackle for fast identification.
Standards Compliant: Meets ASME B30.26, EN13889:2003, and RR-C-271D specifications. Specifications Available Sizes: 3/8", 1/2", 5/8", and 3/4"
Working Load Limits: 1 to 4-3/4 metric tons depending on size
Design Type: Screw pin anchor shackle
Material: Forged steel body with alloy steel pin
Finish: Flat black baked-on powder coat
Design Factor: 6:1 minimum (maximum proof load allowed is 2x WLL)
Proof Test: Not factory proof tested
Traceability: Includes Crosby markings and batch traceability Note: Do not exceed working load limit. Side loading requires capacity reduction. Always inspect before use and remove from service if signs of wear, bending, or damage are present. These shackles are not proof tested at the factory—the stated 2x WLL is the maximum permitted proof load for testing purposes if required in the field.

Specifications

Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
