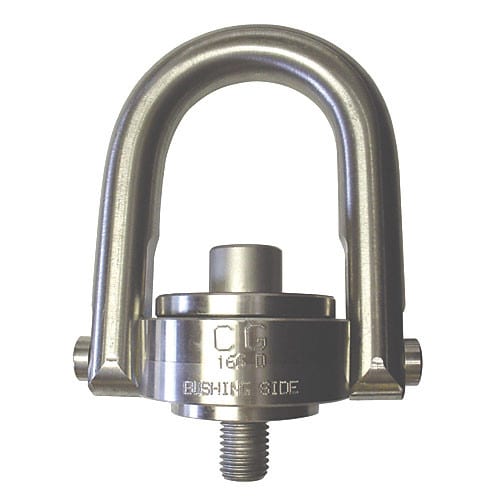

Crosby 5/8″-11 x 1.03″ SS-125UNC Stainless Steel Swivel Hoist Ring – 2000 lbs WLL – #1065032
- Proof-load tested on request, up to 1,200 T
- Test certificate with every item
- IRS · ABS · LRS · BV certification
- Price, stock and lead time within one working day
All components are 316 stainless (except bolt retainers which are made of 15-7 PH magnetic stainless steel). Rated at 100% at 90º angle. Individually proof-tested to 2 times the Working Load Limit with certification. Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles. Marked with…
Request a quote
Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.
The Crosby 5/8"-11 x 1.03" SS-125UNC Stainless Steel Swivel Hoist Ring – 2000 lbs WLL is part of the Crosby swivel range (catalogue no. 1065032). Sealinkers supplies it from Mumbai with documentation on request.
Features
- All components are 316 stainless (except bolt retainers which are made of 15-7 PH magnetic stainless steel).
- Rated at 100% at 90º angle.
- Individually proof-tested to 2 times the Working Load Limit with certification.
- Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
- Marked with a Product Identification Code (PIC) for traceability, top washer is color-coded (red for UNC threads).
- Bolt specification is 316 stainless steel socket head cap screw to ASTM F 837 Group 1 (316)360º swivel and 180º pivot action.
Specifications
| Catalogue description | SS125 5/8X1.03 STAINLESS STEEL SW H RING |
|---|---|
| Crosby product no. | 1065032 |
Prices, stock and lead times are quoted on request. Use the quote form or WhatsApp on this page, and ask for test certificates with your enquiry.
