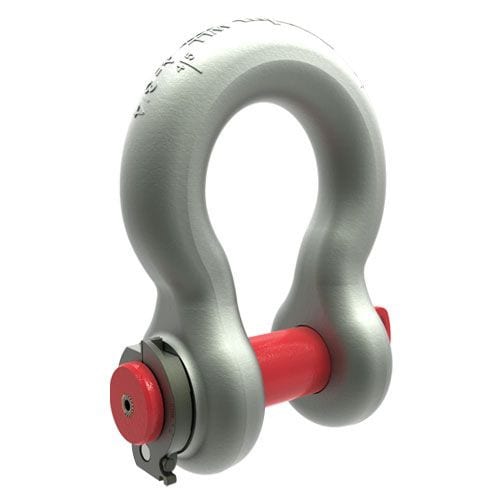

Crosby 4-3/4″ G-2140E Alloy Bolt Type Anchor Shackle – 200 Ton WLL – #1021475

Proof-load tested on request, up to 1,200 T
Test certificate with every item
IRS · ABS · LRS · BV certification
Price, stock and lead time within one working day

Request a quote

Price, stock and lead time by email, usually within one working day. Ask for test certificates with your enquiry.

The Crosby 4-3/4" G-2140E Alloy Bolt Type Anchor Shackle – 200 Ton WLL is part of the Crosby shackle range (catalogue no. 1021475). Sealinkers supplies it from Mumbai with documentation on request.

Quenched & Tempered
Alloy bows, alloy bolts
Meets performance requirements of Grade 8 shackles
Working Load Limit is permanently shown on every shackle
200, 250, and 300 metric ton shackle bows are Dimetcoted®; Pins are Dimetcoted and painted red
All sizes are larger than 1-1/2 IN, RFID equipped
Approved for use at -40° C (-40° F) to 204° C (400° F)
Shackles are Quenched & Tempered and can meet DNV impact requirements of 42 Joules (31 ft-lb) at -20° C (-4° F)
All sizes are individually proof tested to 2.0 times the Working Load Limit
Shackles are provided as follows: Serialized bolt and bow
Material certification (chemical)
Magnetic particle inspected Certification must be requested at time of order
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements; importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26
Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances; certificates available when requested at time of order and may include additional charges
G-2140E meets the performance requirements of Federal Specification RR-C-271G, Type IVA, Grade B, Class 3, except for those provisions required of the contractor
Look for the Red Pin®… the mark of genuine Crosby quality.
